| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | S8-009B |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 10-12days |
| Payment Terms: | L/C / T/T / Western Union / Paypal |
| Product Name: | FR4 PCB Circuit Board ROHS | Thickness: | 1.30 Mm |
|---|---|---|---|
| Size: | 90mmX100mm | Surface Finishing: | Immersion Tin |
| Min. Line Width: | 0.1mm/4mi | Silkscreen Color: | White Black Yellow Green Red |
| High Light: | multilayer printed circuit board,fr4 double sided pcb |
||

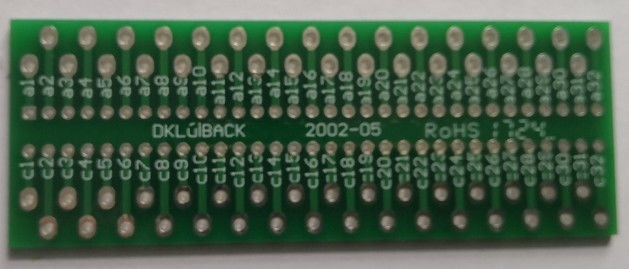

Professional FR4 Multilayer Pcb Immersion Tin Surface Finishing With HAL
| Layer : | 2 Layers |
| Base Material : | Nanya FR4 |
| Copper Thickness : | 1.5 / 1.5 oz in all layer |
| Board Thickness : | 1.3 mm |
| Min. Hole Size : | 6 mil, 0.15mm |
| Min. Line Width : | 4/4 mil, 0.075/0.075 mm |
| Min. Line Spacing : | 4/4mil, 0.075/0.075 mm |
| Surface Finishing : | Immersion Tin |
Products Application:
Our products are widely used in consumer electronics products,network, computer peripheral products,optoelectronic products,power supply products, electronic components,electrical mechanical products and so on.
Advantages :
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery
Technical Capability:
| Item | Technical Parameters |
| Layers | 1-28 Layers |
| Inner Layer Min Trace/Space | 4/4 mil |
| Out Layer Min Trace,Space | 4/4 mil |
| Inner Layer Max Copper | 4 OZ |
| Out Layer Max Copper | 4 OZ |
| Inner Layer Min Copper | 1/3 oz |
| Out Layer Min Copper | 1/3 oz |
| Min hole size | 0.15 mm |
| Max.board thickness | 6 mm |
| Min.board thickness | 0.2mm |
| Max.board size | 680*1200 mm |
| PTH Tolerance | +/-0.075mm |
| NPTH Tolerance | +/-0.05mm |
| Countersink Tolerance | +/-0.15mm |
| Board Thickness Tolerance | +/-10% |
| Min BGA | 7mil |
| Min SMT | 7*10 mil |
| Solder mask bridge | 4 mil |
| Solder mask color | White,black,blue,green,yellow,red,etc |
| Legend color | White,black,yellow,gray,etc |
| Surface finish | HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG |
| Board materials | FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB |
| Impedance control | +/-10% |
| Bow and twist | ≤0.5 |
FAQ:
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
3. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
4. What are the main factors which will affect the price of PCB?
Material;
Surface finish;
Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
5. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
Contact Person: sales
Tel: +8615889494185
