FR4 Material LED Light PCB Board Excellent Heat Dissipation for LED Driver

FR4 Material LED Light PCB Board Excellent Heat Dissipation for LED Driver

    • FR4 Material LED Light PCB Board Excellent Heat Dissipation for LED Driver
    • FR4 Material LED Light PCB Board Excellent Heat Dissipation for LED Driver
  • FR4 Material LED Light PCB Board Excellent Heat Dissipation for LED Driver

    Product Details:

    Place of Origin: China
    Brand Name: ACCPCB
    Certification: ISO, UL, SGS,TS16949
    Model Number: P1119

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Vacuum packing with desiccant
    Delivery Time: 5-8DAS
    Payment Terms: L/C / T/T / Western Union / Paypal
    Supply Ability: 30000SQ.M/PER MONTH
    Contact Now
    Detailed Product Description
    Base Material: Fr4 Count Layer: 1 Layer
    Copper Thickness: 1.50 / 0 OZ In All Layer Finish Board Thickness: 1.0mm
    Solder Mask: Blue Surface Finishing: Immersion Gold
    Usuage: Led Driver Color: Green Blue Black Red White
    Power: 50w/100W/150W Voltage: 160-280V
    High Light:

    led bulb circuit board

    ,

    custom led pcb

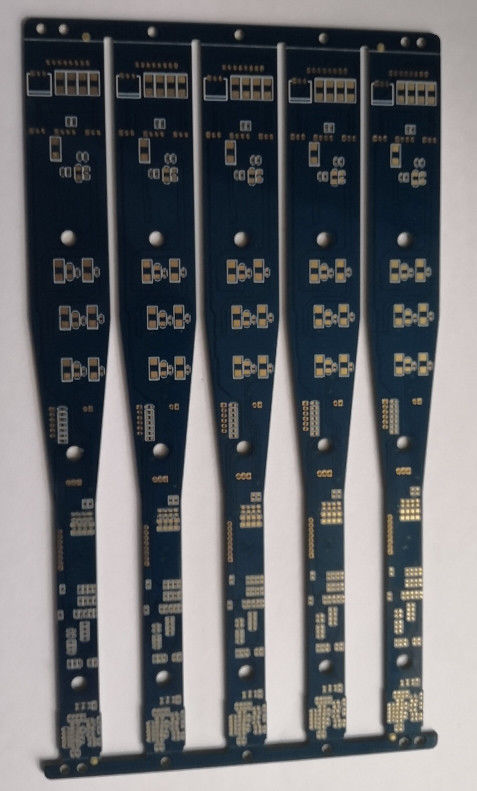

    FR4 Material LED Light PCB Board Excellent Heat Dissipation for LED Driver

    Production description :

    this board is 2 layer it is used on LED light. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new order.all of our PCB are met UL, TS 16949,ROHS, ISO etc. certification.

    PCB Flow Chart.pdf

    Key Specifications/Special Features:


    Base material : FR4
    Copper thickness : 1.5 oz
    Board thickness :1.0 mm
    Min. hole size : 0. 4mm
    Min. line width : 10 mils
    Min. line spacing :10 mils
    Surface finishing : ENIG
    Application : LED lCeiling light
    Board thickness tolerance : ±10%
    Twist& wrap : ≤ 0.5%
    Max panel size:400X800mm
    Aspect ratio:max 10:1
    Nickel plating thickness:150u''-200u''
    outline profile:punching, routing, v-cuting
    outline tolerance:+/-10%
    twist and bow:no more than 0.75%
    impedance control:+/-10%



    ACCPCB Technical Capability.pdf



    Products Application:

    1, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;

    2, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;

    3, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;

    4, Vehicle Electronices: Car etc;

    5, Industrial controls: Medical device ,UPS equipment, Control device etc;

    6, Military & Defense : Military Weapons etc;



    Full range of testing services:

    ▪ AOI, function testing, In circuit testing, X-ray for BGA testing
    ▪ 3D paste thickness test
    ▪ Flash testing and earth bonding tests can also be undertaken where required

    ▪ Using our X-ray machine, we test PCBs to component level and all wiring is fully inspected and tested
    ▪ Each board is carefully examined by our dedicated inspection team using AOI and high magnification viewers

    FR4 Material LED Light PCB Board Excellent Heat Dissipation for LED Driver 0

    FAQ

    1. How do ACCPCB ensure quality?

    Our high quality standard is achieved with the following.
    1.1 The process is strictly controlled under ISO 9001:2008 standards.
    1.2 Extensive use of software in managing the production process
    1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
    1.4.Dedicated quality assurance team with failure case analysis process
    2. What kinds of boards can ACCPCB process?

    Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
    3. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.
    4. What’s the typical process flow for multi-layer PCB?

    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
    5. How many types of surface finish ACCPCB can do?

    O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
    6. What are the main factors which will affect the price of PCB?

    Material;
    Surface finish;
    Board thickness, Copper thickness;
    Technology difficulty;
    Different quality criteria;
    PCB characteristics;
    Payment terms;

    7. How to you make the impedance calculation?

    The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.

    Application:
    Widely used in stage, Industrila control,computer,consuming electronics,security,automotive,power electronics,medical,telecom etc.


    Any further question, welcome to contact us by sending your inquiries
