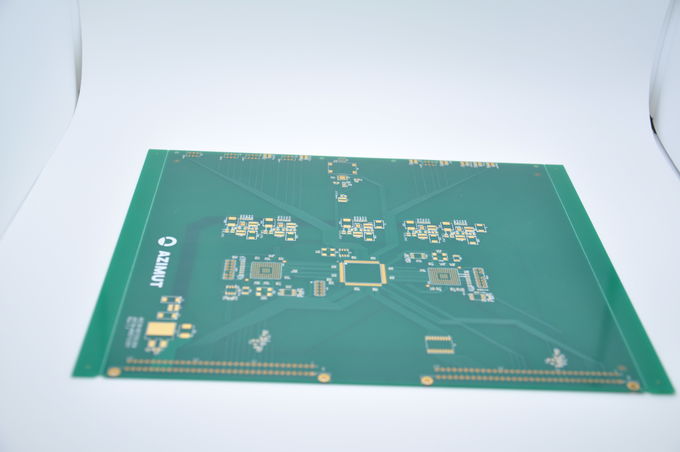

HDI PCB Board Multilayer Circuit Board RoHS 94v0 ISO9001 Standards

HDI PCB Board Multilayer Circuit Board RoHS 94v0 ISO9001 Standards

    • HDI PCB Board Multilayer Circuit Board  RoHS 94v0 ISO9001 Standards
    • HDI PCB Board Multilayer Circuit Board  RoHS 94v0 ISO9001 Standards
  • HDI PCB Board Multilayer Circuit Board  RoHS 94v0 ISO9001 Standards

    Product Details:

    Place of Origin: China
    Brand Name: ACCPCB
    Certification: ISO, UL, SGS,TS16949
    Model Number: P1193

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: Vacuum packing with desiccant
    Delivery Time: 15-20days
    Payment Terms: L/C / T/T / Western Union / Paypal
    Supply Ability: 25000SQ.M/PER MONTH
    Contact Now
    Detailed Product Description
    Material: NYFR4TG170 Layer: 8-layer
    Feature: Immersion Gold Copper Thickness: 2oz Inner Layer / 2.0oz Outlayer
    Board Thickness: 2.3MM
    High Light:

    high density interconnect pcb

    ,

    double sided copper clad board

    HDI PCB Board Multilayer Circuit Board RoHS 94v0 ISO9001 Standards


     PCB capability and services:

    1. Layer: 1 to 20 layers
    2. Materials: FR-4, CEM-3, high TG, FR4 halogen free, FR-1, FR-2, aluminum
    3. Max finished thickness: 0.2 to 4.0mm (0.02-0.25″)
    4. Max finished board side: 500 x 500mm (20 x 20")
    5. Min drilled hole size: 0.25mm (10mil)
    6. Min line width: 0.10mm (4mil)
    7. Min line spacing: 0.10mm (4mil)
    8. Surface finish/treatment: HALS/HALS lead-free, chemical tin, chemical gold, immersion gold, plating gold
    9. Copper thickness: 0.5 to 3.0oz
    10. Solder mask colors: green/black/white/red/blue
    11. Inner packing: plastic bag
    12. Outer packing: standard carton packing
    13. Hole tolerance:
    14. PTH: ±0.076
    15. NTPH: ±0.05
    16. Certifications: UL, ISO 9001, ISO 14001, RoHS Directive-compliant, UL
    17. Profiling punching: routing, V-cut, beveling
    18. Providing OEM service to all sorts of printed circuit board assembly

    Lead Time:



    Types



    (Max ㎡/month)

    Samples

    (days)

    Mass Production(days)
    New PO Repeat PO Urgent
    2layer 50000 sq.m/month 2-3 10-11 8-9 4
    4layer 5-6 11-12 9-11 5
    6layer 6-7 13-14 12-14 6
    8layer 7-8 16-18 14-15 7




    Main Export Markets:

    • Asia
    • Australasia
    • North America
    • Western Europe


    Advantages :


    •  Strict product liability, taking IPC-A-160 standard
    •  Engineering pretreatment before production
    •  Production process control (5Ms)
    •  100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
    •  100% AOI inspection, including X-ray, 3D microscope and ICT
    •  High-voltage test, impedance control test
    •  Micro section, soldering capacity, thermal stress test, shocking test
    •  In-house PCB production
    •  No minimum order quantity and free sample
    •  Focus on low to medium volume production
    •  Quick and on-time delivery



    FAQ



    1. How do ACCPCB ensure quality?



    Our high quality standard is achieved with the following.

    1.1 The process is strictly controlled under ISO 9001:2008 standards.
    1.2 Extensive use of software in managing the production process
    1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
    1.4.Dedicated quality assurance team with failure case analysis process

    2. What kinds of boards can ACCPCB process?



    Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


    3. What data are needed for PCB production?



    PCB Gerber files with RS-274-X format.


    4. What’s the typical process flow for multi-layer PCB?



    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


    5. How many types of surface finish ACCPCB can do?



    O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


    6. What are the main factors which will affect the price of PCB?



    Material;
    Surface finish;

    Board thickness, Copper thickness;
    Technology difficulty;
    Different quality criteria;
    PCB characteristics;
    Payment terms;



    7. How to you make the impedance calculation?



    The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
