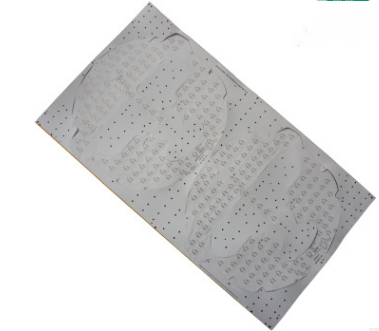

0.8mm thickness LED Light PCB Board Circuit board for compact mask and white colors

0.8mm thickness LED Light PCB Board Circuit board for compact mask and white colors

0.8mm thickness LED Light PCB Board  Circuit board for compact mask and white colors
0.8mm thickness LED Light PCB Board  Circuit board for compact mask and white colors
0.8mm thickness LED Light PCB Board  Circuit board for compact mask and white colors
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P1106
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Supply Ability: 30,000SQ.M/Per Month
Contact Now
Detailed Product Description
Production Name: Rigid-flex PCB Board Material: FR4+PI
Usage: Medical Device Surface Finish: Immersion Gold
Thickness: Rigid Board-1.6mm+0.12mm -Flex Board Min. Line Width: 3 Mil
High Light:

aluminium pcb board

,

rigid circuit board

0.8mm thickness LED Light PCB Board Circuit board for compact mask and white colors



Key Specifications/Special Features:

Layer : 2Layers
Base Material : Al-base
Copper Thickness : 1oz
Board Thickness : 0.1mm-1.2mm
Min. Hole Size : 6 mil, 0.15mm
Min. Line Width : 4/4 mil, 0.075/0.075 mm
Min. Line Spacing : 4/4mil, 0.075/0.075 mm
Surface Finishing : ENIG
Solder Mask Color : Green ,Red,Blue,White,Yellow,Red
Silkscreen color : White,Yellow,Red,Black
Outline : Routing,V-Groove, Beveling punch
Company type : Manufacturer/ Factory
Certificate : UL, CQC, TS16949, ISO14000, ROHS





Capabilities Overview:

Items Technical Capability
Layers 1-28 layers Min. line width/space 4mil

Max.board size (single&doule

sided)

600*1200mm Min.annular ring width: vias 3mil
Surface finish

HAL lead free,gold flash

Immersion silver,Immersion gold ,Immersion Sn,

hard gold,OSP,ect

Min.board thickness(multilayer) 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
Board materials

FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic,

PTFE,nelcon,

ISOLA,polyclad 370 HR); heavy copper,

Metal base clade laminate

Plating thickness (Technique:

Immersion Ni/Au)

Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U''
Impedance control ± 10%

Distance between

line to board edge

Outline: 0.2mm

V-CUT: 0.4mm

Base copper thickness(Inner

and outer layer)

Min. thickness: 0.5 OZ Max.thickness: 6OZ Min.hole size(board thickness ≥2mm) Aspect ratio≤16
Finished copper thickness Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
Max.board thickness(single&doule sided) 3.20mm



Advantages:
▪ No MOQ, 14 years of PCB turnkey services
▪ Quick turn, prototype, low & medium & high volume
▪ OEM services provide
▪ ISO 9001-, ISO 14001-, ISO/TS16949, ISO 13485, IATF16949, OHSAS18001 certified
▪ 100% E-test, visual, AOI inspection, including X-ray, 3D microscope
▪ Fast response within 24 hours



 Full Range Of Testing Services:
▪ AOI, function testing, In circuit testing
▪ 3D paste thickness test
▪ Flash testing and earth bonding tests can also be undertaken where required
▪ Using our X-ray machine, we test PCBs to component level and all wiring is fully inspected and tested
▪ Each board is carefully examined by our dedicated inspection team using AOI and high magnification viewers





FAQ:

1. How do ACCPCB ensure quality?

   Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?

  PCB Gerber files with RS-274-X format.


4. How many types of surface finish ACCPCB can do?

  the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


5. What are the main factors which will affect the price of PCB?

Material;
Surface finish;

Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
