| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P1023 |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing |
| Delivery Time: | 10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 15000SQ.M/Per Month |
| Product Name: | FPC1469 | Material: | PI(Polyimide) |
|---|---|---|---|
| Application: | Medial Device | Size: | 35mmX10mm |
| Color: | Yellow | Thickness: | 0.1mm |
| Surface Finishing: | Immersion Gold | Product Name: | OEM HAL Single Layer Flex Pcb Flexible Print Circuit |
| Layer: | 1 | Type: | Customizable Electronics |
| High Light: | flexible pcb board,multilayer flex pcb |
||

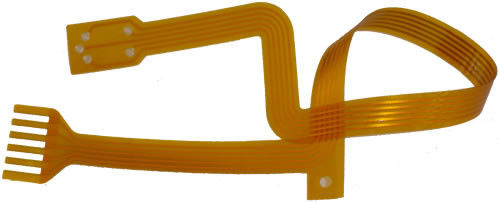

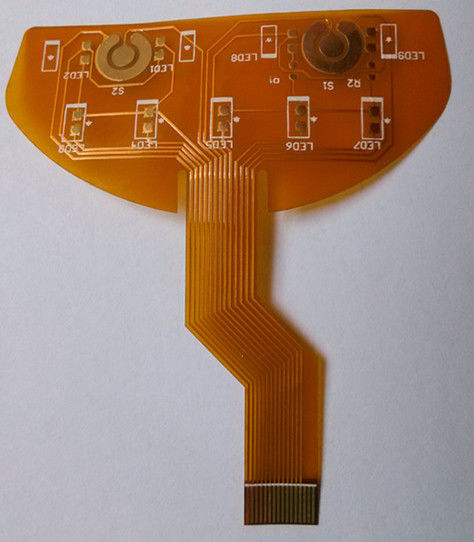

0.1mm thickness Flexible Printed Circuit Polyimide Films Material Themocured Solder Mask
Production description :
this board is single sided layer. it is used for medical device. all of our PCB are met UL, TS 16949,ROHS, ISO Etc. certification. no MOQ request for new order.
Key Specifications/Special Features:
| Layer Conut: | single layer |
| Material : | PI-Polyimide |
| Thermobond Adhesives : | Polyimide |
| Copper Foils : | 1oz |
| Stiffeners : | Polyimide, Fr4,PSA,Metal or Cusomer supplied &requested |
| Surface Finish : | immersion gold (Au:2u'') |
| Au Thickness : | 0.035-0.05u'', Ni:120-200u'' |
| Solder Mask : | Themocured Solder Mask, Liquid Photo Imageable Solder Mask(LPISM) |
| Monthly Capacity : | 1,5000sq.m |
| outline profile: | punching |
| soldr mask: | yellow |
Advantages:
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery
Lead Time :
| Lead Time | 2 / L | 4 / L | 6 / L | 8 / L |
| Sample Order | 3-5days | 6-8days | 10-12days | 12-14days |
| Mass Production | 7-9days | 8-10days | 12-15days | 15-18days |
FAQ :
1. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
4. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
