| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P1116124 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 10-12days |
| Payment Terms: | L/C / T/T / Western Union / Paypal |
| Supply Ability: | 30,000SQ.M/Per Month |
| Material: | Aluminium Based | Thickness: | 1.0mm |
|---|---|---|---|
| Surface Finish: | LEAD FREE HAL | Layer: | Double Sided |
| Copper Thicknes:: | 10Z | PCB Standard: | IPC-A-610 D |
| Type: | Customized PCB | Min Holes Size: | 4mil |
| Min. Line Width: | 4mil | Min Copper Thicness: | 20um |
| Solder Mask Color: | Green,yellow, Red, Black Etc. | Application: | LED Lighting Display |
| High Light: | FR4 LED light PCB Board,1 Oz Two Sided LED PCB,1 Oz FR4 LED PCB |
||

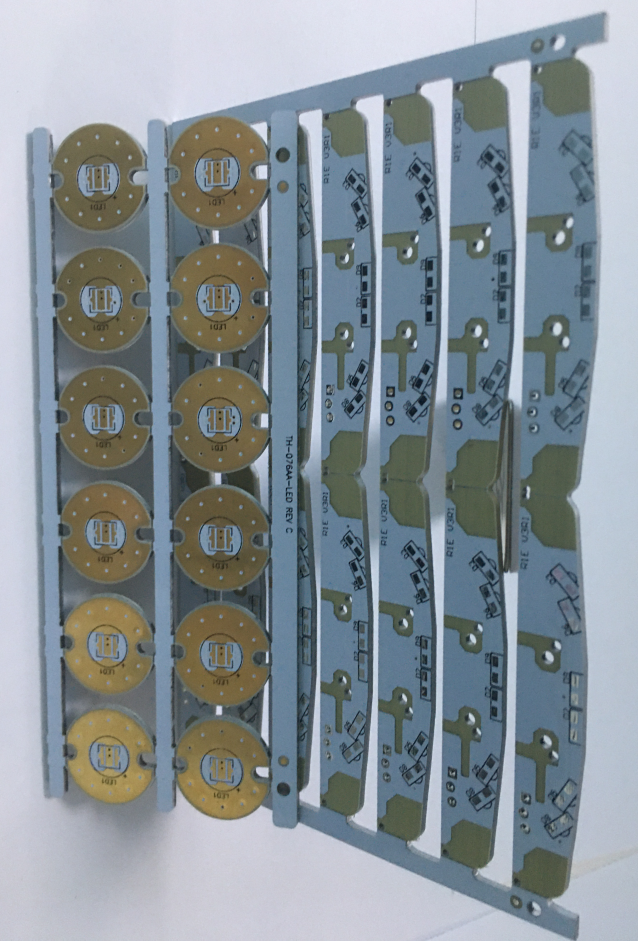

LEAD FREE HAL Two Sided 1 Oz FR4 LED Light PCB Board for led ceiling light
Production description :
this board is double sided layer. it is use for LED ceiling light. all of our PCB are met UL, TS 16949,ROHS, ISO certification etc.
Key Specifications of LED light PCB Board :
| Production Types: | Rigid PCB |
|
Layer : |
two layer pcb |
| Base Material : | FR4 |
| Copper Thickness : | 1 oz |
| Board Thickness : | 1.0 mm |
| Min. Finish Hole Size : | 8 mil (0.10mm) |
| Min. Line Width : | 4 mil |
| Min. Line Spacing : | 4 mil |
| Surface Finishing : | HASL lead free |
| Drilling hole tolerance: | +/-3 mil ( 0.075mm ) |
| Min Outline tolerance : | +/-4 mil ( 0.10mm ) |
| Working panel size : | max:1200mmX600mm (47'' X24'') |
| Outline profile: | CNC routing + V-cut |
| Solder mask : | LPI Solder mask |
| Solder Mask Color : | Blue, black,yellow, matte green |
| Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
| Silkscreen color : | White |
| Twist and Bow : | no more than 0.75 % |
Products Application:
1, Consumer Electronics
2, Telecom Communication
3, Vehicle Electronices
4, Security monitor
6, Industrial controls
7, Military & Defense
Rigid PCB Technical Capability:
| Items | Technical Capability | ||
| Layers | 1-28 layers | Min. line width/space | 4mil |
|
Max.board size (single&doule sided) |
600*1200mm | Min.annular ring width: vias | 3mil |
| Surface finish |
HAL lead free,gold flash Immersion silver,Immersion gold ,Immersion Sn, hard gold,OSP,ect |
Min.board thickness(multilayer) | 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
|
| Board materials |
FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic, PTFE,nelcon, ISOLA,polyclad 370 HR); heavy copper, Metal base clade laminate |
Plating thickness (Technique: Immersion Ni/Au) |
Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U'' |
| Impedance control | ± 10% |
Distance between line to board edge |
Outline: 0.2mm V-CUT: 0.4mm |
|
Base copper thickness(Inner and outer layer) |
Min. thickness: 0.5 OZ Max.thickness: 6OZ | Min.hole size(board thickness ≥2mm) | Aspect ratio≤16 |
| Finished copper thickness | Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
|
Max.board thickness(single&doule sided) | 3.20mm |
Advantages:
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery
Lead Time :
| Lead Time | 2 /L | 4 /L | 6/ L | 8/ L |
| Sample Order | 3-5days | 6-8days | 10-12days | 12-14days |
| Mass Production | 7-9days | 8-10days | 12-15days | 15-18days |
FAQ :
1. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
2. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
3. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
4. How many types of surface finish ACCPCB can do?
ACCPCB has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
5. What are the main factors which will affect the price of PCB?
Material;
Surface finish;
Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
6. How do you make the impedance calculation?
The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
