Aluminum Based material 2 Layer 1.6mm 4mil LED Light PCB Board with black solder mask

Aluminum Based material 2 Layer 1.6mm 4mil LED Light PCB Board with black solder mask

Aluminum Based material 2 Layer 1.6mm 4mil LED Light PCB Board with black solder mask
Aluminum Based material 2 Layer 1.6mm 4mil LED Light PCB Board with black solder mask
Aluminum Based material 2 Layer 1.6mm 4mil LED Light PCB Board with black solder mask
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P1116125
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Supply Ability: 30,000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: Aluminum Based Thickness: 1.6MM
Surface Finish: HAL LEAD FREE Layer: 2L
Copper Thicknes:: 2oz In Each Layer PCB Standard: IPC-A-610 D
Type: OEM PCB,customized PCB Min Holes Size: 4mil
Min. Line Width: 4mil Min Copper Thicness: 20um
Solder Mask Color: Green,yellow, Red, White, Black Etc. Application: LED Strip
High Light:

4mil LED Light PCB Board

,

1.6mm 4mil LED PCB Board

,

2 Layer 4mil LED PCB Board

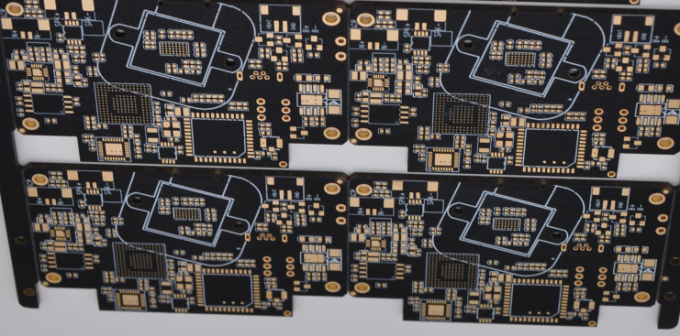

Aluminum Based material 2 Layer 1.6mm 4mil LED Light PCB Board with black solder mask



Production description :

this board is 2layer layer. it is use for LED light. all of our PCB are met UL, TS 16949,ROHS, ISO Etc. certification. no MOQ request for new order.



Key Specifications of Aluminium PCB for LED :

Production Types:  Rigid PCB

Layer :

 2Layers

Material : aluminum substrate pcb
Copper Thickness :  2/2oz
Board Thickness :  1.20mm
Min. Finish Hole Size :  8 mil  (0.10mm)
Min. Line Width :  4 mil
Min. Line Spacing :  4 mil
Surface Finishing : ENIG,OSP,HASL,Immersion Gold,Gold Plating
Drilling hole tolerance: +/-3 mil    (  0.075mm )
Min Outline tolerance : +/-4 mil    (  0.10mm )
Working panel size :  max:1200mmX600mm (47'' X24'')
Outline profile: Punching, Routing , CNC routing + V-cut
Solder mask : LPI Solder mask, Peelable mask
Solder Mask Color : Blue, black,yellow, matte green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Twist and Bow :  no more than 0.75 %



PCB Flow Chart.pdf



Products Application:

Our products are widely used in consumer electronics products,network, computer peripheral products,optoelectronic products,power supply products, electronic components,electrical mechanical products and so on.



Rigid PCB Technical Capability:

 Items                                      Technical Capability
Layers 1-28 layers Min. line width/space 4mil

Max.board size (single&doule

sided)

600*1200mm Min.annular ring width: vias 3mil
Surface finish

HAL lead free,gold flash

Immersion silver,Immersion gold ,Immersion Sn,

hard gold,OSP,ect

Min.board thickness(multilayer) 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
Board materials

FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic,

PTFE,nelcon,

ISOLA,polyclad 370 HR); heavy copper,

Metal base clade laminate

Plating thickness (Technique:

Immersion Ni/Au)

Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U''
Impedance control ± 10%

Distance between

line to board edge

Outline: 0.2mm

V-CUT: 0.4mm

Base copper thickness(Inner

and outer layer)

Min. thickness: 0.5 OZ Max.thickness: 6OZ Min.hole size(board thickness ≥2mm) Aspect ratio≤16
Finished copper thickness Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
Max.board thickness(single&doule sided) 3.20mm



Lead Time :

Lead Time 2 /L 4 /L 6/ L 8/ L
Sample Order 3-5days 6-8days 10-12days 12-14days
Mass Production 7-9days 8-10days 12-15days 15-18days

Aluminum Based material 2 Layer 1.6mm 4mil LED Light PCB Board with black solder mask 0


FAQ :

1. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.



2. What’s the typical process flow for multi-layer PCB?

   Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.



3. How do ACCPCB ensure quality?

  Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process


4. How many types of surface finish ACCPCB can do?

  ACCPCB has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


5. How to you make the impedance calculation?

   The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
