| Product Name: | Multilayer Rigid Boards | Thickness: | 1.50mm |
|---|---|---|---|
| Size: | 100mmX60mm | Min. Line Spacing: | 0.1MM / 4MIL |
| Board Thickness: | 0.5~3.2mm | Surface Finishing: | Immersion Gold |
| Copper Thickness: | 0.5oz-6oz | Min Line Spacing: | 4mil (0.1mm) |
| Min.line Width: | 4 Mil ( 0.1mm) | Min Drill Hole Size: | 0.2mm |
| High Light: | 4MIL Multilayer Printed Circuit Board,1oz Multilayer Printed Circuit Board,0.1MM Multilayer Printed Circuit Board |
||
ENGI Surface 1oz 4MIL Multilayer Printed Circuit Board

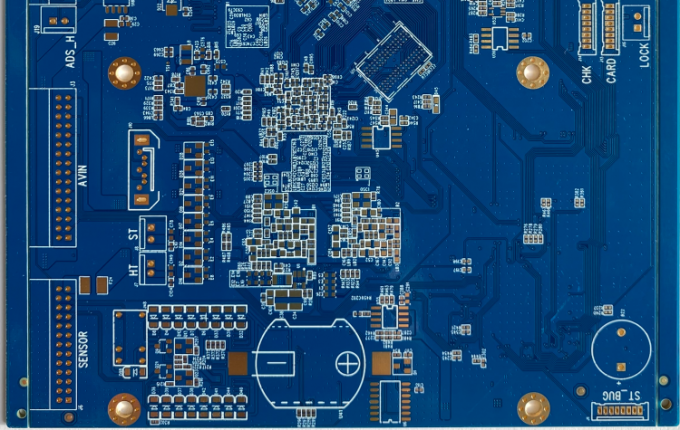

Multilayer PCB Board multi layer circuit board with ENGI surface for measuring instrument
Production description :
this board is 6layer with 1oz copper thickness. it is used for measuring device. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new order. all of these boards are met UL,TS16949, ISO9001 Etc.
| Production Types: | Rigid Multilayer PCB |
| Layer : | 6 layer |
| Base Material : | FR4 |
| Copper Thickness : | 1 oz |
| Board Thickness : | 2.30mm |
| Min. Finish Hole Size : | 8 mil (0.10mm) |
| Min. Line Width : | 4 mil |
| Min. Line Spacing : | 4 mil |
| Surface Finishing : | ENIG |
| Drilling hole tolerance: | +/-3 mil ( 0.075mm ) |
| Min Outline tolerance : | +/-4 mil ( 0.10mm ) |
| Working panel size : | max:1200mmX600mm (47'' X24'') |
| Outline profile: | Punching, Routing , CNC routing + V-cut |
| Solder mask : | LPI Solder mask, Peelable mask |
| Solder Mask Color : | Blue, black,yellow, matte green |
| Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
| Silkscreen color : | White |
| Twist and Bow : | no more than 0.75 % |
Products Application:
1, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;
2, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;
3, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;
4, Vehicle Electronices: Car etc;
5, Smart Home: Wearable device ,computers, ipad , Remote Control etc;
6, Industrial controls: Medical device ,UPS equipment, Control device etc;
7, Military & Defense : Military Weapons etc;
Technical Capability:
| ITEMS | Capability |
| Max. layer count | 28L |
| Min. line widty | 0.08mm |
| Min. line spacing | 0.08mm |
| Min. hole size | 0.15mm |
| Board thickness | 0.4-6.0mm |
| Max. boardsize | 520×620mm |
| (PTH) Hole size tolerance(PTH) | ±0.075mm |
| (NPTH) Hole size tolerance(NPTH) ) | ±0.05mm |
| Holeposition tolerance(Routing) | ±0.1mm |
| Outline tolerance(Punching) | ±0.1mm |
FAQ:
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
3. How many types of surface finish ACCPCB can do?
O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
