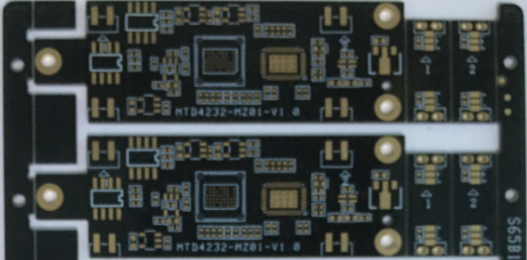

16 Layer 2oz Copper Multilayer PCB Board Immersion Gold Surface

16 Layer 2oz Copper Multilayer PCB Board Immersion Gold Surface

16 Layer 2oz Copper Multilayer PCB Board Immersion Gold Surface
16 Layer 2oz Copper Multilayer PCB Board Immersion Gold Surface
16 Layer 2oz Copper Multilayer PCB Board Immersion Gold Surface
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO,SGS,TS16949
Model Number: S10212
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Vacuum packing
Delivery Time: 3-5days
Payment Terms: T/T ,Western Union,Paypal
Supply Ability: 50000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: KB FR4 Tg150 Count: 16layer
Surface Finish: Immersion Gold Application: Electronic Register
Solder Mask: Blue,Green,black, Yellow Etc. Copper Thickness: 2oz All Layer
Min. Hole Size: 8 Mil Min. Line Spacing: 4mil
Min. Line Width: 4mil Service: Customized PCB
High Light:

2oz Copper Multilayer PCB Board

,

Immersion Gold multilayer PCB

,

KB FR4 multilayer PCB Board

16 Layer 2oz Copper Multilayer PCB Board Immersion Gold Surface



Production description :

this board is  16layer. it is used on electronic register. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new boards, for repeat order, just meet 3sq.m.



Key Specifications of tablet PCB board​ :

Production Types:

Rigid PCB

Layer :

16L

Base Material :

 KB FR4 TG150

Copper Thickness :

2 oz

Board Thickness :

 0.4mm

Min. Finish Hole Size :

 8 mil  (0.20mm)

Min. Line Width :

 4 mil

Min. Line Spacing :

 4 mil

Surface Finishing :

ENIG,OSP,HASL,Immersion Gold,Gold Plating

Drilling hole tolerance:

+/-3 mil    (  0.075mm )

Min Outline tolerance :

+/-4 mil    (  0.10mm )

Working panel size :

 max:1200mmX600mm (47'' X24'')

Outline profile:

Punching, Routing , CNC routing + V-cut

Solder mask :

LPI Solder mask, Peelable mask

Solder Mask Color :

Blue, black,yellow, matte green

Certificate :

UL, CQC, TS16949, ISO14000, ROHS

Silkscreen color :

White

Twist and Bow :

 no more than 0.75 %



PCB Flow Chart.pdf



Products Application:

1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense

16 Layer 2oz Copper Multilayer PCB Board Immersion Gold Surface 0

Technology Capability:

Item Technical Parameters
Layers 1-28 Layers
Inner Layer Min Trace/Space 4/4 mil
Out Layer Min Trace,Space 4/4 mil
Inner Layer Max Copper 4 OZ
Out Layer Max Copper 4 OZ
Inner Layer Min Copper 1/3 oz
Out Layer Min Copper 1/3 oz
Min hole size 0.15 mm
Max.board thickness 6 mm
Min.board thickness 0.2mm
Max.board size 680*1200 mm
PTH Tolerance +/-0.075mm
NPTH Tolerance +/-0.05mm
Countersink Tolerance +/-0.15mm
Board Thickness Tolerance +/-10%
Min BGA 7mil
Min SMT 7*10 mil
Solder mask bridge 4 mil
Solder mask color White,black,blue,green,yellow,red,etc
Legend color White,black,yellow,gray,etc
Surface finish HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG
Board materials FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB
Impedance control +/-10%
Bow and twist ≤0.5





16 Layer 2oz Copper Multilayer PCB Board Immersion Gold Surface 1

FAQ :



1. What data are needed for PCB production?

   PCB Gerber files with RS-274-X format.

2. What kinds of boards can ACCPCB process?

  Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What’s the typical process flow for multi-layer PCB?

    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.



4.How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process







Contact Details
Accuracy Electronics Technologies Co.,Ltd

Contact Person: sales

Tel: +8615889494185

Send your inquiry directly to us (0 / 3000)
