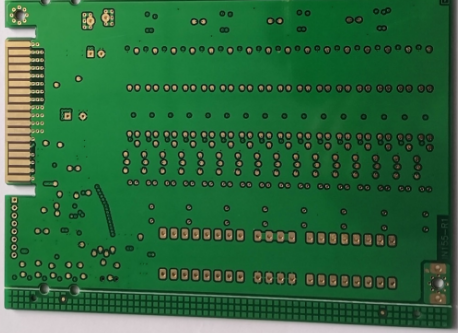

1.60mm Multilayer PCB Board 4 Layer Pcb Prototype For Printer Machines

1.60mm Multilayer PCB Board 4 Layer Pcb Prototype For Printer Machines

1.60mm Multilayer PCB Board 4 Layer Pcb Prototype For Printer Machines
1.60mm Multilayer PCB Board 4 Layer Pcb Prototype For Printer Machines
1.60mm Multilayer PCB Board 4 Layer Pcb Prototype For Printer Machines
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: S1207123
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Contact Now
Detailed Product Description
Product Name: Multilayer Rigid Boards Thickness: 1.60mm
Size: 120mmX90mm Min. Line Spacing: 0.1MM / 4MIL
Board Thickness: 0.5~3.2mm Surface Finishing: HAL LEAD FREE, Immersion Gold,immersion Silver /TIN
Copper Thickness: 1oz-3oz Min Line Spacing: 4mil (0.1mm)
Min.line Width: 4 Mil ( 0.1mm) Min Hole Size: 0.10mm
High Light:

1.60mm Multilayer PCB Board

,

ENIG Multilayer PCB Board

,

4mil 4 Layer PCB Board

1.60mm Multilayer PCB Board 4 Layer Pcb Prototype For Printer Machines



Production description :



this board is 4layer with 1oz copper thickness. it is used for printer machines. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new boards.



Key Specifications of amplifier PCB board:



Production Types: Rigid PCB
Layer : Multilayer
Base Material : FR4 tg170
Copper Thickness : 1 oz
Board Thickness : 1.60mm
Min. Finish Hole Size : 8 mil (0.10mm)
Min. Line Width : 4 mil
Min. Line Spacing : 4 mil
Surface Finishing : ENIG,OSP,HASL,Immersion Gold,Gold Plating
Drilling hole tolerance: +/-3 mil ( 0.075mm )
Min Outline tolerance : +/-4 mil ( 0.10mm )
Working panel size : max:1200mmX600mm (47'' X24'')
Outline profile: Punching, Routing , CNC routing + V-cut
Solder mask : LPI Solder mask, Peelable mask
Solder Mask Color : Blue, black,yellow, matte green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Twist and Bow : no more than 0.75 %



PCB Flow Chart.pdf





Products Application:



Our products are widely used in meter, medical, solar energy, mobile, communication, industrial control, power electronics,security, consuming, computer, automotive, aerospace, military and so on.





Technical Capability:



 ITEMS Capability
 Max. layer count 28L
 Min. line widty 0.08mm
Min. line spacing 0.08mm
 Min. hole size 0.15mm
 Board thickness 0.4-6.0mm
Max. boardsize 520×620mm
(PTH) Hole size tolerance(PTH) ±0.075mm
(NPTH) Hole size tolerance(NPTH) ) ±0.05mm
Holeposition tolerance(Routing) ±0.1mm
 Outline tolerance(Punching) ±0.1mm



1.60mm Multilayer PCB Board 4 Layer Pcb Prototype For Printer Machines 0



FAQ:


1. What kinds of boards can ACCPCB process?



Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


2. What data are needed for PCB production?



PCB Gerber files with RS-274-X format.



3. How many types of surface finish ACCPCB can do?



O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.



4. How to you make the impedance calculation?



The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
