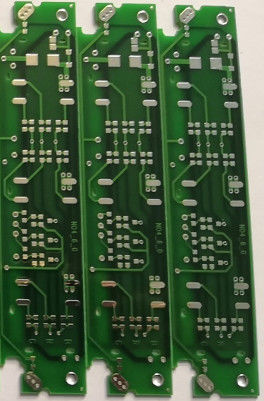

1.5oz Copper FR4 Tg150 HAL LEAD FREE Multilayer PCB Board 2 Layer

1.5oz Copper FR4 Tg150 HAL LEAD FREE Multilayer PCB Board 2 Layer

1.5oz Copper FR4 Tg150 HAL LEAD FREE Multilayer PCB Board 2 Layer
1.5oz Copper FR4 Tg150 HAL LEAD FREE Multilayer PCB Board 2 Layer
1.5oz Copper FR4 Tg150 HAL LEAD FREE Multilayer PCB Board 2 Layer
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO,SGS,TS16949
Model Number: S102124
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Vacuum packing
Delivery Time: 3-5days
Payment Terms: T/T ,Western Union,Paypal
Supply Ability: 50000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: FR4 Tg150 Count: 2layer
Surface Finish: LEAD FREE HAL Application: Electronic Pos Machines
Solder Mask: Blue,Green,black, Yellow Etc. Copper Thickness: 1.5oz All Layer
Min. Hole Size: 8 Mil Min. Line Spacing: 4mil
Min. Line Width: 4mil Service: Customized PCB
High Light:

HAL LEAD FREE multilayer PCB Board

,

Tg150 multilayer PCB Board

,

1.5oz Copper multilayer PCB

1.5oz Copper FR4 Tg150 HAL LEAD FREE Multilayer PCB Board 2 Layer



Production description :

this board is  2layer. it is used on electronic pos machines. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new boards, for repeat order, just meet 3sq.m.



Key Specifications of tablet PCB board​ :

Production Types:

Rigid PCB

Layer :

2L

Base Material :

KB FR4

Copper Thickness :

1.5oz

Board Thickness :

 0.4mm

Min. Finish Hole Size :

 8 mil  (0.20mm)

Min. Line Width :

 4 mil

Min. Line Spacing :

 4 mil

Surface Finishing :

ENIG,OSP,HASL,Immersion Gold,Gold Plating

Drilling hole tolerance:

+/-3 mil    (  0.075mm )

Min Outline tolerance :

+/-4 mil    (  0.10mm )

Working panel size :

 max:1200mmX600mm (47'' X24'')

Outline profile:

Punching, Routing , CNC routing + V-cut

Solder mask :

LPI Solder mask, Peelable mask

Solder Mask Color :

Blue, black,yellow, matte green

Certificate :

UL, CQC, TS16949, ISO14000, ROHS

Silkscreen color :

White

Twist and Bow :

 no more than 0.75 %



PCB Flow Chart.pdf



Products Application:

1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense

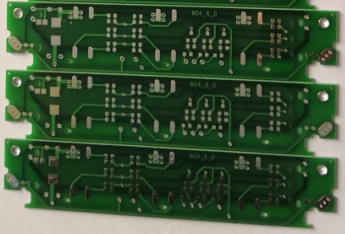

1.5oz Copper FR4 Tg150 HAL LEAD FREE Multilayer PCB Board 2 Layer 0

Technology Capability:

Item Technical Parameters
Layers 1-28 Layers
Inner Layer Min Trace/Space 4/4 mil
Out Layer Min Trace,Space 4/4 mil
Inner Layer Max Copper 4 OZ
Out Layer Max Copper 4 OZ
Inner Layer Min Copper 1/3 oz
Out Layer Min Copper 1/3 oz
Min hole size 0.15 mm
Max.board thickness 6 mm
Min.board thickness 0.2mm
Max.board size 680*1200 mm
PTH Tolerance +/-0.075mm
NPTH Tolerance +/-0.05mm
Countersink Tolerance +/-0.15mm
Board Thickness Tolerance +/-10%
Min BGA 7mil
Min SMT 7*10 mil
Solder mask bridge 4 mil
Solder mask color White,black,blue,green,yellow,red,etc
Legend color White,black,yellow,gray,etc
Surface finish HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG
Board materials FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB
Impedance control +/-10%
Bow and twist ≤0.5


1.5oz Copper FR4 Tg150 HAL LEAD FREE Multilayer PCB Board 2 Layer 1

FAQ :

1. How do ACCPCB ensure quality?

   Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

  Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.
