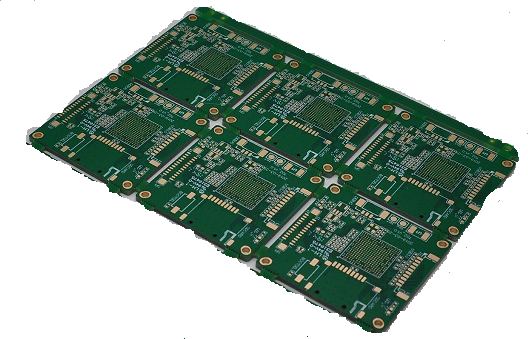

3layer pcb Prototype Multilayer PCB Board for Led Display monitor

3layer pcb Prototype Multilayer PCB Board for Led Display monitor

3layer pcb Prototype Multilayer PCB Board for Led Display monitor
3layer pcb Prototype Multilayer PCB Board for Led Display monitor
3layer pcb Prototype Multilayer PCB Board for Led Display monitor
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: S2-012B1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Contact Now
Detailed Product Description
Count: 3 Layer Copper Thickness: 1oz
Cooper In Holes: 20um Application: LeD Monitor
Pcb Standard: IPC-A-610 E Class II-III Solder Mask: Green

3layer pcb Prototype Multilayer PCB Board for Led Display monitor





Key Specifications/Special Features:

Count : 3 Layers
Base Material : FR4 tg150
Copper Thickness : 1 /1/1/1oz
Board Thickness : 1.40 mm
Cooper in holes : min 20um
Min. Hole Size : 8mil / 0.2mm
Min. Line Width : 4 / 4 mil
Min. Line Spacing : 4 / 4 mil
Surface Finishing : Immersion gold
Certificate: UL, CQC, TS16949, ISO14000, ROHS

PCB Flow Chart.pdf

ACCPCB Technical Capability.pdf



Advantages :
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery



Technical Capability:

 ITEMS Capability
 Max. layer count 28L
 Min. line widty 0.08mm
Min. line spacing 0.08mm
 Min. hole size 0.15mm
 Board thickness 0.4-6.0mm
Max. boardsize 520×620mm
(PTH) Hole size tolerance(PTH) ±0.075mm
(NPTH) Hole size tolerance(NPTH) ) ±0.05mm
Holeposition tolerance(Routing) ±0.1mm
 Outline tolerance(Punching) ±0.1mm



FAQ:

1. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


2. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.


3. What’s the typical process flow for multi-layer PCB?

Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


4. How many types of surface finish ACCPCB can do?

    the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


5. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process



3layer pcb Prototype Multilayer PCB Board for Led Display monitor 0
