|Material:||FR4TG170||Application:||Security Camera Montherboard|
|Cooper Thickness:||2 Oz Each Layer||Board Thickness:||1.80mm|
|Surface Finish:||Immersion Gold||Feature:||Rigid Circuit Boards|
copper clad circuit board,
copper core pcb
2 Oz copper thickness Heavy Copper PCB 1.60 Mm board Thickness Fire for Security Camera Motherboard
Production description :

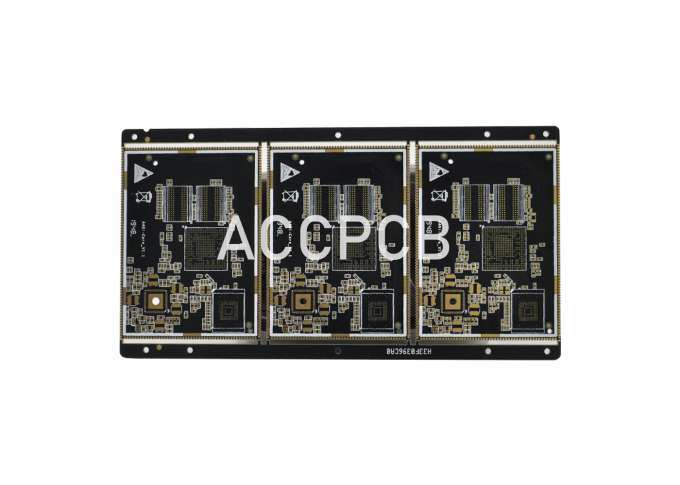

this board is 8layer with 2oz copper thickness. it is used for security camera montherboard. we can accept any quantity board such as PCB prototype,samll volum, middle and large volume . no MOQ request for new order. all of these boards are met UL,TS16949, ISO9001 Etc.
|Layer :||8 Layers|
|Base Material :||FR4 tg150|
|Copper Thickness :||2 oz in all layer|
|Board Thickness :||1.60mm|
|Min. Hole Size :||8 mil, 0.2mm|
|Min. Line Width :||4 / 4 mil|
|Min. Line Spacing :||4 / 4 mil|
|Surface Finishing :||ENIG|
|Solder Mask Color :||green|
|Certificate :||UL, CQC, TS16949, ISO14000, ROHS|
|Silkscreen color :||White|
|HS Code :||85340010|
|Category||Performance indicator||Quality Goal|
|Customer service rate||99.9%|
|Semi Finished product||Process inspection pass rate||100%|
|Finished product||FQA Rebate rate||0.1%|
|Scrapped||1L scrap rate||0.5%|
|2L scrap rate||1%|
|Multi Layer scrap rate||2%|
|Customers||Customer complaint rate||0.8%|
|Customer return rate||0.5%|
Quality assurance :
Every production process has a special person to test to ensure quality, AOI, E-testing, Flying Probe Test.
Have professional engineers to check the quality
All products have passed CE, FCC, ROHS and other certifications
Product Application Field :
1. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
4. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
5. How many types of surface finish ACCPCB can do?
O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
6. How to you make the impedance calculation?
The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
