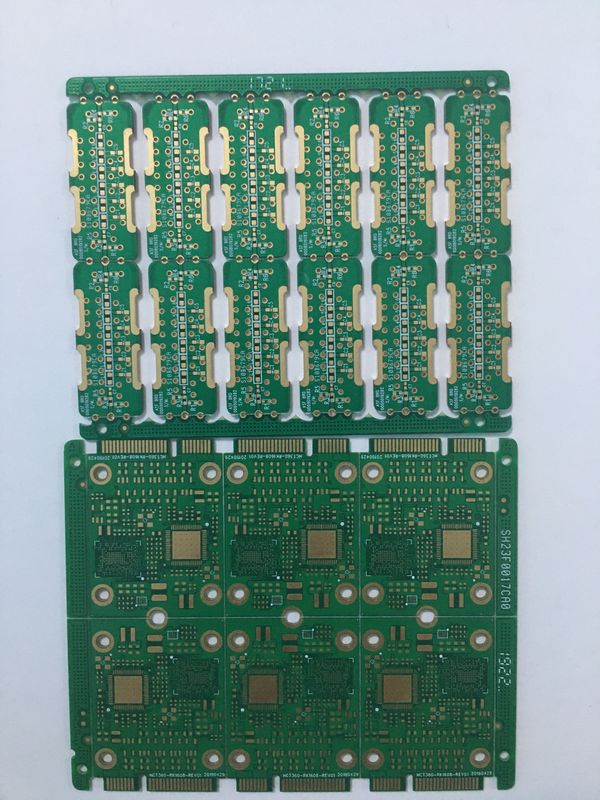

4 Layers fr4 TG180 1.60mm Heavy Copper PCB with 3 OZ Copper

4 Layers fr4 TG180 1.60mm Heavy Copper PCB with 3 OZ Copper

4 Layers fr4 TG180 1.60mm Heavy Copper PCB with 3 OZ Copper
4 Layers fr4 TG180 1.60mm Heavy Copper PCB with 3 OZ Copper
4 Layers fr4 TG180 1.60mm Heavy Copper PCB with 3 OZ Copper
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P1116123
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Supply Ability: 30,000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: FR4 TG150 Thickness: 1.0mm
Surface Finish: Immersion Gold Layer: 4L
Copper Thicknes:: 3 Oz In Each Layer PCB Standard: IPC-A-610 D
Type: OEM PCB,customized PCB Min Holes Size: 4mil
Min. Line Width: 4mil Min Copper Thicness: 20um
Solder Mask Color: Green,yellow, Red, Black Etc. Application: LCD Monitor
High Light:

1.60mm Heavy Copper PCB

,

TG180 Heavy Copper PCB

,

High Tg Heavy Copper PCB

4 Layers fr4 TG180 1.60mm Heavy Copper PCB with 3 OZ Copper



Production description :

This board is 4layer with 3oz copper thickness. it is use for power supply,convert transform. we can accep PCB prototype,samll volum, middle and large volume. no MOQ request for new boards.



Key Specifications of heavy copper PCB:

Production Types: Rigid PCB

Layer :

4 Layers
Base Material : FR4 tg180
Copper Thickness :  3 / 3 / 3 / 3 oz
Board Thickness :  1.60mm
Min. Finish Hole Size :  8 mil  (0.10mm)
Min. Line Width :  4 mil
Min. Line Spacing :  4 mil
Surface Finishing : ENIG,OSP,HASL,Immersion Gold,Gold Plating
Drilling hole tolerance: +/-3 mil    (  0.075mm )
Min Outline tolerance : +/-4 mil    (  0.10mm )
Working panel size :  max:1200mmX600mm (47'' X24'')
Outline profile: Punching, Routing , CNC routing + V-cut
Solder mask : LPI Solder mask, Peelable mask
Solder Mask Color : Blue, black,yellow, matte green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Twist and Bow :  no more than 0.75 %



PCB Flow Chart.pdf



Products Application:

1, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;

2, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;

3, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;

4, Industrial controls: Medical device ,UPS equipment, Control device etc;

5, Vehicle Electronices: Car etc;

6, Military & Defense : Military Weapons etc;



Rigid PCB Technical Capability:

 Items                                      Technical Capability
Layers 1-28 layers Min. line width/space 4mil

Max.board size (single&doule

sided)

600*1200mm Min.annular ring width: vias 3mil
Surface finish

HAL lead free,gold flash

Immersion silver,Immersion gold ,Immersion Sn,

hard gold,OSP,ect

Min.board thickness(multilayer) 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
Board materials

FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic,

PTFE,nelcon,

ISOLA,polyclad 370 HR); heavy copper,

Metal base clade laminate

Plating thickness (Technique:

Immersion Ni/Au)

Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U''
Impedance control ± 10%

Distance between

line to board edge

Outline: 0.2mm

V-CUT: 0.4mm

Base copper thickness(Inner

and outer layer)

Min. thickness: 0.5 OZ Max.thickness: 6OZ Min.hole size(board thickness ≥2mm) Aspect ratio≤16
Finished copper thickness Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
Max.board thickness(single&doule sided) 3.20mm



Advantages:
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery



Lead Time :

Lead Time 2 /L 4 /L 6/ L 8/ L
Sample Order 3-5days 6-8days 10-12days 12-14days
Mass Production 7-9days 8-10days 12-15days 15-18days

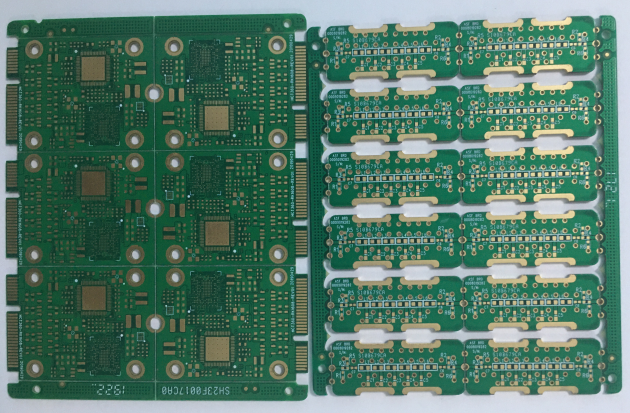

4 Layers fr4 TG180 1.60mm Heavy Copper PCB with 3 OZ Copper 0


FAQ :
1. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


2. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.


3. What’s the typical process flow for multi-layer PCB?

    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.



4. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
