Amplifier Device 1.35mm High Frequency PCB Immersion Gold Surface Finish

Amplifier Device 1.35mm High Frequency PCB Immersion Gold Surface Finish

Amplifier Device 1.35mm High Frequency PCB Immersion Gold Surface Finish
Amplifier Device 1.35mm High Frequency PCB Immersion Gold Surface Finish
Amplifier Device 1.35mm High Frequency PCB Immersion Gold Surface Finish
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P1116129
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Supply Ability: 30,000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: FR4 Thickness: 1.35mm
Surface Finish: Immersion Gold Layer: 8L
Pcb Standard: IPC-A-610 D Usage: OEM Electronics
Copper Thickness: 1/2OZ 1OZ 2OZ 3OZ Min. Line Spacing: 0.2mm
Min. Hole Size: 0.1mm Product Name: Printed Circuit Board
Solder Mask: Green. Red. Blue. White. Black.Yellow Type: OEM PCB,customized PCB
High Light:

1.35mm High Frequency PCB

,

Immersion Gold High Frequency PCB

,

Immersion Gold FR4 PCB

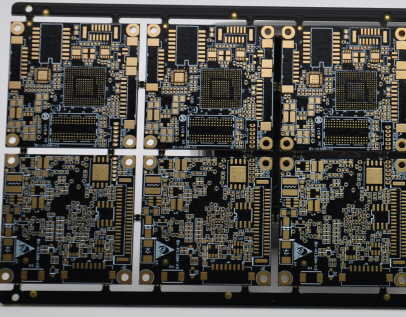

1.35mm Thickness High Frequency Board immersion gold Surface Finish for Amplifier device





Production description :



this board is 4layer with 1.2oz copper thickness.  PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new order. all of these boards are met UL,TS16949, ISO9001 Etc.





PCB Flow Chart.pdf





Key Specifications/Special Features :



Layer : 4 Layers
Base Material : FR4 tg150
Copper Thickness : 1.2oz in all layer
Board Thickness : 1.35mm
Min. Hole Size : 8 mil
Min. Line Width : 6 mil
Min. Line Spacing : 6 /mil
Surface Finishing : immersion gold
Solder Mask Color : Black
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Outline profile : Routing, punching
Twist and bow : 0.75%
Immpedance control : +/- 10%
Solder mask :  LPI solder mask, peelable mask





ACCPCB Technical Capability.pdf





Products Application:



1, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;



2, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;



3, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;



4, Industrial controls: Medical device ,UPS equipment, Control device etc;



5, Vehicle Electronices: Car etc;



6, Military & Defense : Military Weapons etc;



Lead Time :



Lead Time 2 /L 4 /L 6/ L 8/ L
Sample Order 3-5days 6-8days 10-12days 12-14days
Mass Production 7-9days 8-10days 12-15days 15-18days
