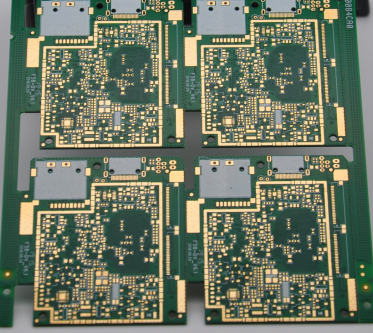

ENIG 8 Mil Fr4 HDI PCB Board Green Solder Mask For Wireless NIC

ENIG 8 Mil Fr4 HDI PCB Board Green Solder Mask For Wireless NIC

ENIG 8 Mil Fr4 HDI PCB Board Green Solder Mask For Wireless NIC
ENIG 8 Mil Fr4 HDI PCB Board Green Solder Mask For Wireless NIC
ENIG 8 Mil Fr4 HDI PCB Board Green Solder Mask For Wireless NIC
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO,SGS,TS16949
Model Number: S102134
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Vacuum packing
Delivery Time: 3-5days
Payment Terms: T/T ,Western Union,Paypal
Supply Ability: 50000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: KB FR4 Rigid Board Count: 8 Layer
Surface Finish: ENIG Application: Wireless NIC
Solder Mask: Green COLOR Copper Thickness: 2 Oz All Layer
Min. Hole Size: 8 Mil/6 Mil Min. Line Spacing: 4mil / 0.1MM
Min. Line Width: 4mil / 0.1MM Service: Customize Board
High Light:

Fr4 HDI PCB Board

,

8 Mil HDI PCB Board

,

ENIG HDI PCB Board

ENIG 8 Mil Fr4 HDI PCB Board Green Solder Mask For Wireless NIC



Production description :



this board is  HDI pcb. it is used on electronic wireless NIC . all of our board are met UL, ISO9001, TS1694  certification etc.no MOQ request for new boards, for repeat order, just meet 3sq.m.





Key Specifications of single PCB board :

Production Types:

 HDI PCB

Layer :

 8 Layer

Base Material :

 FR4 TG170

Copper Thickness :

 2oz

Board Thickness :

 2.20mm

Min. Finish Hole Size :

 8 mil  (0.10mm)

Min. Line Width :

 4 mil

Min. Line Spacing :

 4 mil

Surface Finishing :

ENIG,OSP,HASL,Immersion Gold,Gold Plating

Drilling hole tolerance:

+/-3 mil    (  0.075mm )

Min Outline tolerance :

+/-4 mil    (  0.10mm )

Working panel size :

 max:1200mmX600mm (47'' X24'')

Outline profile:

Punching, Routing , CNC routing + V-cut

Solder mask :

LPI Solder mask, Peelable mask

Solder Mask Color :

Blue, black,yellow, matte green

Certificate :

UL, CQC, TS16949, ISO14000, ROHS

Silkscreen color :

White

Twist and Bow :

 no more than 0.75 %



PCB Flow Chart.pdf





Products Application:



ENIG 8 Mil Fr4 HDI PCB Board Green Solder Mask For Wireless NIC 0

Technology Capability:



Item

Technical Parameters

Layers

1-28 Layers

Inner Layer Min Trace/Space

4/4 mil

Out Layer Min Trace,Space

4/4 mil

Inner Layer Max Copper

4 OZ

Out Layer Max Copper

4 OZ

Inner Layer Min Copper

1/3 oz

Out Layer Min Copper

1/3 oz

Min hole size

0.15 mm

Max.board thickness

6 mm

Min.board thickness

0.2mm

Max.board size

680*1200 mm

PTH Tolerance

+/-0.075mm

NPTH Tolerance

+/-0.05mm

Countersink Tolerance

+/-0.15mm

Board Thickness Tolerance

+/-10%

Min BGA

7mil

Min SMT

7*10 mil

Solder mask bridge

4 mil

Solder mask color

White,black,blue,green,yellow,red,etc

Legend color

White,black,yellow,gray,etc

Surface finish

HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG

Board materials

FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB

Impedance control

+/-10%

Bow and twist

≤0.5




ENIG 8 Mil Fr4 HDI PCB Board Green Solder Mask For Wireless NIC 1

FAQ :


1. What kinds of boards can ACCPCB process?



Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


2. What data are needed for PCB production?



PCB Gerber files with RS-274-X format.
