Name: Immersion Gold FR4 Tg170 4mil HDI PCB Board For Wireless Router
Brand: ACCPCB
SKU: S10212

Home Products HDI PCB Board

Immersion Gold FR4 Tg170 4mil HDI PCB Board For Wireless Router

Product Details:

Place of Origin:	China
Brand Name:	ACCPCB
Certification:	ISO,SGS,TS16949
Model Number:	S10212

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Vacuum packing
Delivery Time:	3-5days
Payment Terms:	T/T ,Western Union,Paypal
Supply Ability:	50000SQ.M/Per Month

Contact Now

Detailed Product Description

Material:	FR4 Tg170	Count:	8 Layer
Surface Finish:	Immersion Gold	Application:	Wireless Router
Solder Mask:	Green	Copper Thickness:	1 Oz All Layer
Min. Hole Size:	8 Mil/6 Mil	Min. Line Spacing:	4mil
Min. Line Width:	4mil	Service:	Customized PCB
High Light:	4mil HDI PCB Board , Tg170 HDI PCB Board , Immersion Gold HDI PCB Board

Immersion Gold FR4 Tg170 4mil HDI PCB Board For Wireless Router

fr4 circuit board HDI PCB board with immersion gold for wireless router

Production description :

this board is 8layer with 1oz copper thickness. it is used for wireless router. we can accepted PCB prototype,samll volum, middle and large volume. no MOQ request for new order. all of these boards are met UL,TS16949, ISO9001 Etc.

Key Specifications of tablet PCB board :

Production Types:	Rigid PCB
Layer :	8Layer
Base Material :	FR4 tg170
Copper Thickness :	1 oz
Board Thickness :	0.4mm
Min. Finish Hole Size :	8 mil (0.20mm)
Min. Line Width :	5 mil
Min. Line Spacing :	5 mil
Surface Finishing :	immersion Gold
Drilling hole tolerance:	+/-3 mil ( 0.075mm )
Min Outline tolerance :	+/-4 mil ( 0.10mm )
Working panel size :	max:1200mmX600mm (47'' X24'')
Outline profile:	Punching, Routing , CNC routing + V-cut
Solder mask :	LPI Solder mask, Peelable mask
Solder Mask Color :	Blue, black,yellow, matte green
Certificate :	UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color :	White
Twist and Bow :	no more than 0.75 %

PCB Flow Chart.pdf

Products Application:

1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense

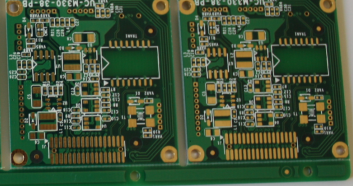

Immersion Gold FR4 Tg170 4mil HDI PCB Board For Wireless Router 0

Technology Capability:

Item	Technical Parameters
Layers	1-28 Layers
Inner Layer Min Trace/Space	4/4 mil
Out Layer Min Trace,Space	4/4 mil
Inner Layer Max Copper	4 OZ
Out Layer Max Copper	4 OZ
Inner Layer Min Copper	1/3 oz
Out Layer Min Copper	1/3 oz
Min hole size	0.15 mm
Max.board thickness	6 mm
Min.board thickness	0.2mm
Max.board size	680*1200 mm
PTH Tolerance	+/-0.075mm
NPTH Tolerance	+/-0.05mm
Countersink Tolerance	+/-0.15mm
Board Thickness Tolerance	+/-10%
Min BGA	7mil
Min SMT	7*10 mil
Solder mask bridge	4 mil
Solder mask color	White,black,blue,green,yellow,red,etc
Legend color	White,black,yellow,gray,etc
Surface finish	HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG
Board materials	FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB
Impedance control	+/-10%
Bow and twist	≤0.5

Immersion Gold FR4 Tg170 4mil HDI PCB Board For Wireless Router 1

FAQ :

1. What kinds of boards can ACCPCB process?

Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.

2. What data are needed for PCB production?

PCB Gerber files with RS-274-X format.

3. How many types of surface finish ACCPCB can do?

O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
