| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P11162 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 10-12days |
| Payment Terms: | L/C / T/T / Western Union / Paypal |
| Supply Ability: | 30,000SQ.M/Per Month |
| Material: | ITEQ FR4 | Thickness: | 1.6mm |
|---|---|---|---|
| Surface Finish: | ENIG | Layer: | 12L |
| Copper Thicknes:: | 2oz In Each Layer | PCB Standard: | IPC-A-610 D |
| Type: | OEM PCB,customized PCB | Min Holes Size: | 4mil |
| Min. Line Width: | 4mil | Min Copper Thicness: | 20um |
| Solder Mask Color: | Green | Application: | Smart Lock |
| High Light: | 1.60mm High Density PCB,2OZ Copper High Density PCB,2OZ Smart Lock Board |
||

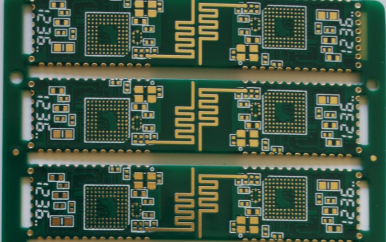

ITEQ Fr4 2OZ Copper 1.60mm High Density PCB 12 Layer Smart Lock Board
Production description :
this board is 12layer with 2oz copper thickness. it is used for electronic smart lock. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new order. all of these boards are met UL,TS16949, ISO9001 Etc.
Production description of High Frequency PCB:
| Production Types: | Rigid PCB |
|
Layer : |
12 Layers |
| Base Material : | iteqFR4 |
| Copper Thickness : | 2 oz in all layer |
| Board Thickness : | 1.60mm |
| Min. Finish Hole Size : | 8 mil (0.10mm) |
| Min. Line Width : | 4 mil |
| Min. Line Spacing : | 4 mil |
| Surface Finishing : | Immersion Gold |
| Drilling hole tolerance: | +/-3 mil ( 0.075mm ) |
| Min Outline tolerance : | +/-4 mil ( 0.10mm ) |
| Working panel size : | max:1200mmX600mm (47'' X24'') |
| Outline profile: | Punching, Routing , CNC routing + V-cut |
| Solder mask : | LPI Solder mask, Peelable mask |
| Solder Mask Color : | Blue, black,yellow, matte green |
| Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
| Silkscreen color : | White |
| Twist and Bow : | no more than 0.75 % |
Products Application:
1, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;
2, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;
3, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;
4, Industrial controls: Medical device ,UPS equipment, Control device etc;
5, Vehicle Electronices: Car etc;
6, Military & Defense : Military Weapons etc;
Rigid PCB Technical Capability:
| Items | Technical Capability | ||
| Layers | 1-28 layers | Min. line width/space | 4mil |
|
Max.board size (single&doule sided) |
600*1200mm | Min.annular ring width: vias | 3mil |
| Surface finish |
HAL lead free,gold flash Immersion silver,Immersion gold ,Immersion Sn, hard gold,OSP,ect |
Min.board thickness(multilayer) | 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
|
| Board materials |
FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic, PTFE,nelcon, ISOLA,polyclad 370 HR); heavy copper, Metal base clade laminate |
Plating thickness (Technique: Immersion Ni/Au) |
Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U'' |
| Impedance control | ± 10% |
Distance between line to board edge |
Outline: 0.2mm V-CUT: 0.4mm |
|
Base copper thickness(Inner and outer layer) |
Min. thickness: 0.5 OZ Max.thickness: 6OZ | Min.hole size(board thickness ≥2mm) | Aspect ratio≤16 |
| Finished copper thickness | Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
|
Max.board thickness(single&doule sided) | 3.20mm |
Lead Time :
| Lead Time | 2 /L | 4 /L | 6/ L | 8/ L |
| Sample Order | 3-5days | 6-8days | 10-12days | 12-14days |
| Mass Production | 7-9days | 8-10days | 12-15days | 15-18day |
FAQ :
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
3. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
