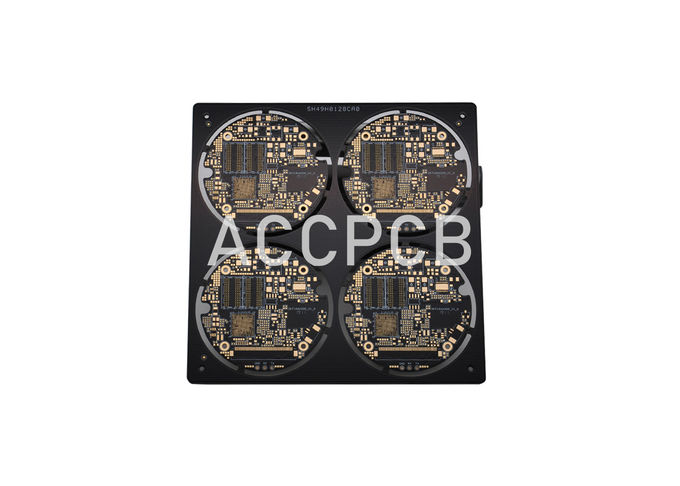

Aoi Inspection Lead Free High Density PCB Black Color IPC A 160 Standard

Aoi Inspection Lead Free High Density PCB Black Color IPC A 160 Standard

Aoi Inspection Lead Free High Density PCB Black Color IPC A 160 Standard
Aoi Inspection Lead Free High Density PCB Black Color IPC A 160 Standard
Aoi Inspection Lead Free High Density PCB Black Color IPC A 160 Standard
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P1053
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 12-15Days
Payment Terms: L/C / T/T / Western Union / Paypal
Supply Ability: 30000SQ.M/PER MONTH
Contact Now
Detailed Product Description
Number Of Layer: 4 L Material: NY FR4
Finish Copper Thickness: 0.5oz Inner Layer / 1 Oz Outlayer Surface Finish: Immersion Gold ( Au:2u'')
Min Holes: 0.15mm Application: Smart Home Equipment
High Light:

Lead Free High Density PCB

,

immersion gold High Density PCB

,

FR4 high density interconnect pcb

Aoi Inspection Lead Free High Density PCB Black Color IPC A 160 Standard



Production Feature :

Layer : 4 Layers
Base Material : NYFR4
Copper Thickness : 0.5 oz outlayer / 0.5 oz inner layer
Board Thickness : 0.80 mm
Min. Hole Size : 0.15 mm
Min. Line Width : 0.127 mm
Min. Line Spacing : 0.127 mm
Surface Finishing : immersion gold
Certificate : UL, CQC, TS16949, ISO14000, ROHS
PTH tolerance : +/-3mil
NPTH tolerance : +/-2mil
Silkscreen color : Black
Outline : Routing,V-Groove



Company description :

ACCPCB is a high-tech enterprise specializing in the production and sales of double-sided and multi-layer rigid circuit boards in Boluo County, Huizhou City. It has an independent property factory of about 20,000 square meters, more than 500 employees, and an annual design production capacity of 500,000 square meters. The company has passed ISO9001 and ISO14000 quality and environmental system certification, and has obtained UL certification of the United States. The process capability is comprehensive and the technical strength is strong. The products fully comply with the EU RoHS directive green environmental protection requirements. The company aims to become a first-class professional circuit board manufacturer, providing the highest quality products and services based on quality assurance, we listen to the voice of our customers, establish a good relationship with all customers, and make progress together and grow together.



Advantages:

• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery



Shipping Information:

FOB Port : Hong Kong                                                          Lead Time : 8 - 20 days
HTS Code : 8534.00.90                                                   Dimensions per Carton : 37X27X22mm
Weight Per Carton : 20 Kilograms



FAQ :

1. How do ACCPCB ensure quality?

   Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?

   PCB Gerber files with RS-274-X format.


4. What’s the typical process flow for multi-layer PCB?

Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


5. How many types of surface finish ACCPCB can do?

   the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.



Aoi Inspection Lead Free High Density PCB Black Color IPC A 160 Standard 0
