|Pcb Standard:||IPC-A-610 D||Usage:||OEM Electronics|
fr4 printed circuit board,
immersion gold pcb

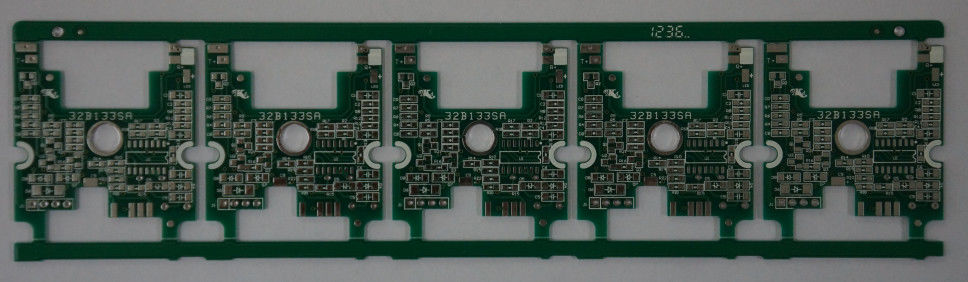

RO4003C Material High Frequency PCB 1 OZ Copper Thickness Immersion Tin Finishing
Key Specifications/Special Features :
|Layer :||6 Layers|
|Base Material :||Rogers Ro4003c|
|Copper Thickness :||1 / 1 / 1 / 1 / 1 / 1 oz|
|Board Thickness :||1.50mm|
|Min. Hole Size :||8 mil, 0.2mm|
|Min. Line Width :||6 / 6 mil|
|Min. Line Spacing :||6 / 6 mil|
|Surface Finishing :||immersion tin|
|Solder Mask Color :||Green|
|Certificate :||UL, CQC, TS16949, ISO14000, ROHS|
|Silkscreen color :||White|
Quality assurance :
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery
Lead Time :
|Lead Time||2 /L||4 /L||6/ L||8/ L|
1. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
4. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
5. How many types of surface finish ACCPCB can do?
O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
6. What are the main factors which will affect the price of PCB?
Board thickness, Copper thickness;
Different quality criteria;
7. How to you make the impedance calculation?
The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
