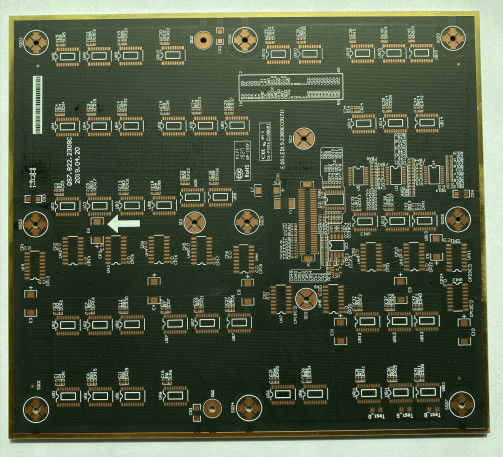

Antenna Device FM Transmitter Communication PCB With RoHS Compliance Double Sided

Antenna Device FM Transmitter Communication PCB With RoHS Compliance Double Sided

    • Antenna Device FM Transmitter Communication PCB With RoHS Compliance Double Sided
    • Antenna Device FM Transmitter Communication PCB With RoHS Compliance Double Sided
  • Antenna Device FM Transmitter Communication PCB With RoHS Compliance Double Sided

    Product Details:

    Place of Origin: China
    Brand Name: ACCPCB
    Certification: ISO, UL, SGS,TS16949
    Model Number: S1078

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: Vacuum packing with desiccant
    Delivery Time: 10-12day
    Payment Terms: L/C / T/T / Western Union / Paypal
    Supply Ability: 30000SQ.M/PER MONTH
    Contact Now
    Detailed Product Description
    Material: FR4tg150 Size: 100mmX200mm
    Surface Finish: Immersion Tin Copper Thickness: 1/2OZ 1OZ 2OZ 3OZ
    Product Name: Electronic Control Board Usage: OEM Electronics
    High Light:

    bluetooth circuit board

    ,

    integrated circuit board



    Antenna Device FM Transmitter Communication PCB With RoHS Compliance Double Sided



    Key Specifications/Special Features:



    Layer : 4 layer
    Base Material : KB FR4tg150
    Copper Thickness : 2 / 1 / 1 / 1 / 2 oz
    Board Thickness : 1.20mm
    Min. Hole Size : 8 mil / 0.2 mm
    Min. Line Width : 5 / 5 mil
    Min. Line Spacing : 5 / 5 mil
    Surface Finishing : ENIG
    Solder Mask Color : GREEN
    Outline : Routing,V-Groove





    PCBs which are widly used in following Electronics field:



    Industril Control System
    Power Supply
    LED drive, LED Lighting
    Communication Device
    automotive electronics
    Security Electronics
    Household Control
    Digital Appliances
    Frequency converter
    Medical Device

    •

    Company Introduce:



    Accuracy Electronics Technologies Co., Ltd. is a high-tech enterprise specializing in the production and sales of double-sided and multi-layer rigid circuit boards in Boluo County, Huizhou City. It has an independent property factory of about 20,000 square meters, more than 500 employees, and an annual design production capacity of 500,000 square meters. The company has passed ISO9001 and ISO14000 quality and environmental system certification, and has obtained UL certification of the United States. The process capability is comprehensive and the technical strength is strong. The products fully comply with the EU RoHS directive green environmental protection requirements. The company aims to become a first-class professional circuit board manufacturer, providing the highest quality products and services based on quality assurance, we listen to the voice of our customers, establish a good relationship with all customers, and make progress together and grow together





    Quality assurance:



    Every production process has a special person to test to ensure quality, AOI, E-testing, Flying Probe Test.
    Have professional engineers to check the quality
    All products have passed CE, FCC, ROHS and other certifications





    FAQ :



    1. How do ACCPCB ensure quality?



    Our high quality standard is achieved with the following.



    1.1 The process is strictly controlled under ISO 9001:2008 standards.
    1.2 Extensive use of software in managing the production process
    1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
    1.4.Dedicated quality assurance team with failure case analysis process

    2. What kinds of boards can ACCPCB process?



    Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


    3. What data are needed for PCB production?



    PCB Gerber files with RS-274-X format.


    4. What’s the typical process flow for multi-layer PCB?



    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


    5. How many types of surface finish ACCPCB can do?



    O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


    6. What are the main factors which will affect the price of PCB?



    Material;
    Surface finish;

    Board thickness, Copper thickness;
    Technology difficulty;
    Different quality criteria;
    PCB characteristics;
    Payment terms;



    7. How to you make the impedance calculation?



    The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.



    Antenna Device FM Transmitter Communication PCB With RoHS Compliance Double Sided 0

    Contact Details
    Accuracy Electronics Technologies Co.,Ltd

    Contact Person: sales

    Send your inquiry directly to us (0 / 3000)
