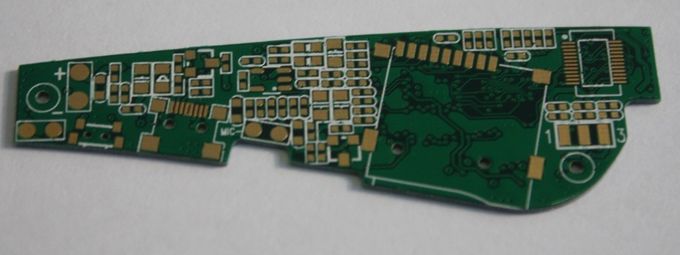

Communication ITEQ FR4 PCB Rigid PCB 1.60mm Board Thickness Four Layers

Communication ITEQ FR4 PCB Rigid PCB 1.60mm Board Thickness Four Layers

Communication ITEQ FR4 PCB Rigid PCB 1.60mm Board Thickness Four Layers
Communication ITEQ FR4 PCB Rigid PCB 1.60mm Board Thickness Four Layers
Communication ITEQ FR4 PCB Rigid PCB 1.60mm Board Thickness Four Layers
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P1198
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12day
Payment Terms: L/C / T/T / Western Union / Paypal
Supply Ability: 30000SQ.M/PER MONTH
Contact Now
Detailed Product Description
Product Name: Smart Switch PCB Board Thickness: 1.58 0mm
Copper Thickness: 1OZ For All Layer Min. Line Spacing: 5/5mil(0.127/0.127mm)
Surface Finishing: ENIG Service: 24 Hours At Your Service
High Light:

bluetooth circuit board

,

integrated circuit board

ITEQ FR4 Communication PCB Rigid PCB 1.60mm Board Thickness Four Layers



Production description :

this board is 6layer . it is used for communication . PCB prototype,samll volum, middle and large volume are accepted . no MOQ request for new order. all of these boards are met UL,TS16949, ISO9001 Etc.



Key Specifications/Special Features:

Layer : 6 Layers
Base Material : FR4 tg170
Copper Thickness : 1 / 1 / 1 / 1 / 1 / 1oz in all layer
Board Thickness : 1.580mm
Min. Hole Size : 8 mil, 0.2mm
Min. Line Width : 4 / 4 mil
Min. Line Spacing : 4 / 4 mil
Surface Finishing : ENIG
Solder Mask Color : green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Outline : Routing
HS Code : 85340010



PCBs which are widly used in following Electronics field:

Industril Control System
Power Supply
LED drive, LED Lighting
Communication Device
automotive electronics
Security Electronics
Household Control
Digital Appliances
Frequency converter
Medical Device

  •

Company Introduce:

Accuracy Electronics Technologies Co., Ltd. is a high-tech enterprise specializing in the production and sales of double-sided and multi-layer rigid circuit boards in Boluo County, Huizhou City. It has an independent property factory of about 20,000 square meters, more than 500 employees, and an annual design production capacity of 500,000 square meters. The company has passed ISO9001 and ISO14000 quality and environmental system certification, and has obtained UL certification of the United States. The process capability is comprehensive and the technical strength is strong. The products fully comply with the EU RoHS directive green environmental protection requirements. The company aims to become a first-class professional circuit board manufacturer, providing the highest quality products and services based on quality assurance, we listen to the voice of our customers, establish a good relationship with all customers, and make progress together and grow together





Quality assurance:

Every production process has a special person to test to ensure quality, AOI, E-testing, Flying Probe Test.
Have professional engineers to check the quality
All products have passed CE, FCC, ROHS and other certifications





FAQ :



1. How do ACCPCB ensure quality?

  Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.
