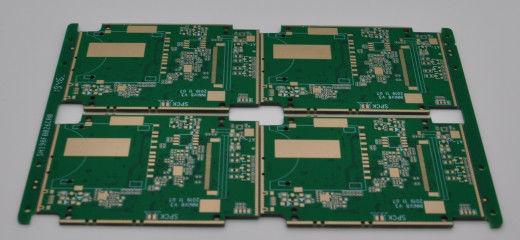

1.58mm thickness PWB Circuit Board with Green solder mask for electronic instrumentation

1.58mm thickness PWB Circuit Board with Green solder mask for electronic instrumentation

1.58mm thickness PWB Circuit Board  with Green solder mask for electronic instrumentation
1.58mm thickness PWB Circuit Board  with Green solder mask for electronic instrumentation
1.58mm thickness PWB Circuit Board  with Green solder mask for electronic instrumentation
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO,UL,SGS,TS16949,ROHS
Model Number: P121702
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Vacuum Packing With Desiccant
Delivery Time: 6-10days
Payment Terms: T/T / Western Union / Paypal
Supply Ability: 35,000SQ.M/Per Month
Contact Now
Detailed Product Description
Finish Thickness: 1.58±10%mm Minimum Via Dia: 0.15mm
Surface Finish: Lead Free HAL Dielectric Constant: 4.0
Application: Electronic Instrument
High Light:

pwb assembly

,

pwa printed wiring assembly

1.58mm thickness PWB Circuit Board with Green solder mask for electronic instrumentation



Key Specifications/Special Features:



Material : FR4 6 layer
Finish thickness :

1.58 ±10%mm

Minimum width/spacing :

0.127 / 0.127mm

Minimum via dia :

0.2mm

Surface finish :

Lead free HAL

Immpedance :

90 ohm

Solder mask :

Green

Legends : White
Certification :

ISO UL ROHS SGS

Company type: Manufacturer/ Factory​



PCB Flow Chart.pdf


Here is our PCB order capability:

  • Layer :  top 20 layers
  • Materials : FR-4,  FR4 High Tg
  • TG : 130-180
  • Surface : HASL , Immersion Gold/Silver/Tin, OSP
  • Min drill size : 0.10mm
  • Min track/spacing : 4/4-mil
  • Buried and blind via : 0.2mm
  • CNC Milling and V-cut
  • Solder mask colors : Green, Blue, Black, White, Red and Yellow, Matte green, Matte black, Matte Blue
  • Silkscreen colors : black, white and yellow
  • Half Holes
  • Impedance control
  • Blue Peelable Mask
  • Carbon Treated
  • HDI available



Main Export Markets:

  • Asia
  • Australasia
  • Central/South America
  • Eastern Europe
  • Mid East/Africa
  • North America
  • Western Europe





Shipping Information :



FOB Port :  Hong Kong / Shenzhen

Lead Time :  6-10 days

HTS Code :  8534.00.10

Dimensions Per Carton : 37X27X22 cm

Weight Per Carton : 20 Kilograms



1.58mm thickness PWB Circuit Board  with Green solder mask for electronic instrumentation 0



FAQ :



1. How do ACCPCB ensure quality?



Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?



Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?



PCB Gerber files with RS-274-X format.


4. What’s the typical process flow for multi-layer PCB?



Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


5. How many types of surface finish ACCPCB can do?



O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


6. What are the main factors which will affect the price of PCB?



Material;
Surface finish;

Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;



7. How to you make the impedance calculation?



The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
