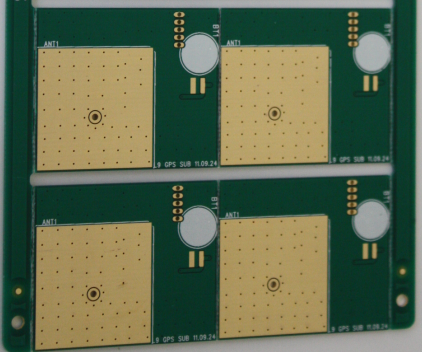

1 Oz Copper 1.62mm PWB Circuit Board With 4mil Min Line Space And Width

1 Oz Copper 1.62mm PWB Circuit Board With 4mil Min Line Space And Width

1 Oz Copper 1.62mm PWB Circuit Board With 4mil Min Line Space And Width
1 Oz Copper 1.62mm PWB Circuit Board With 4mil Min Line Space And Width
1 Oz Copper 1.62mm PWB Circuit Board With 4mil Min Line Space And Width
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO,SGS,TS16949
Model Number: S102135
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Vacuum packing
Delivery Time: 3-5days
Payment Terms: T/T ,Western Union,Paypal
Supply Ability: 50000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: NanyaFR4 Count: 6 Rigid Layer
Surface Finish: Immersion Silver Application: Rechargeable Battery
Solder Mask: Mate Green Copper Thickness: 1oz All Layer
Min. Hole Size: 8 Mil/6 Mil Min. Line Spacing: 4mil
Min. Line Width: 4mil Service: Customized PCB
High Light:

1.62mm PWB Circuit Board

,

TS16949 PWB Circuit Board

,

HASL PWB Circuit Board

1 Oz Copper 1.62mm PWB Circuit Board With 4mil Min Line Space And Width



Production description :



this board is  6layer with 1oz copper thickness. it is used on rechargeable battery.  PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new order. all of these boards are met UL,TS16949, ISO9001 Etc.



PCB Flow Chart.pdf



Key Specifications of high frequency board :



Production Types:

Rigid  PCB

Layer :

6 layer

Base Material :

FR4

Copper Thickness :

1oz

Board Thickness :

1.620mm

Min. Finish Hole Size :

 8 mil  (0.20mm)

Min. Line Width :

 4 mil

Min. Line Spacing :

 4 mil

Surface Finishing :

HASL LEAD FREE

Drilling hole tolerance:

+/-3 mil    (  0.075mm )

Min Outline tolerance :

+/-4 mil    (  0.10mm )

Working panel size :

 max:1200mmX600mm (47'' X24'')

Outline profile:

Punching, Routing , CNC routing + V-cut

Solder mask :

LPI Solder mask, Peelable mask

Solder Mask Color :

Blue, black,yellow, matte green

Certificate :

UL, CQC, TS16949, ISO14000, ROHS

Silkscreen color :

White

Twist and Bow :

 no more than 0.75 %







Technology Capability:



Item

Technical Parameters

Layers

1-28 Layers

Inner Layer Min Trace/Space

4/4 mil

Out Layer Min Trace,Space

4/4 mil

Inner Layer Max Copper

4 OZ

Out Layer Max Copper

4 OZ

Inner Layer Min Copper

1/3 oz

Out Layer Min Copper

1/3 oz

Min hole size

0.15 mm

Max.board thickness

6 mm

Min.board thickness

0.2mm

Max.board size

680*1200 mm

PTH Tolerance

+/-0.075mm

NPTH Tolerance

+/-0.05mm

Countersink Tolerance

+/-0.15mm

Board Thickness Tolerance

+/-10%

Min BGA

7mil

Min SMT

7*10 mil

Solder mask bridge

4 mil

Solder mask color

White,black,blue,green,yellow,red,etc

Legend color

White,black,yellow,gray,etc

Surface finish

HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG

Board materials

FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB

Impedance control

+/-10%

Bow and twist

≤0.5








Products Application:



1, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;



2, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;



3, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;



4, Vehicle Electronices: Car etc;



5, Industrial controls: Medical device ,UPS equipment, Control device etc;



6, Military & Defense : Military Weapons etc;
