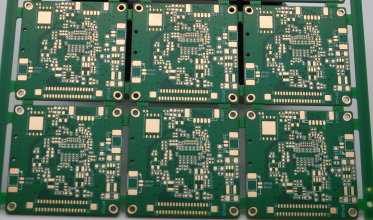

KB FR4 1.60mm PWB Circuit Board Gold Plating For Medical Device

KB FR4 1.60mm PWB Circuit Board Gold Plating For Medical Device

KB FR4 1.60mm PWB Circuit Board Gold Plating For Medical Device
KB FR4 1.60mm PWB Circuit Board Gold Plating For Medical Device
KB FR4 1.60mm PWB Circuit Board Gold Plating For Medical Device
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P11981
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12day
Payment Terms: L/C / T/T / Western Union / Paypal
Supply Ability: 30000SQ.M/PER MONTH
Contact Now
Detailed Product Description
Product Name: PWB PCB Board Board Thickness: 1.20mm
Copper Thickness: 1.5OZ For All Layer Min. Line Spacing: 4/5mil(0.1/0.1mm)
Surface Finishing: ENIG Service: 24 Hours At Your Service
Copper Thicknes In Hole: 0.020-0.035mm Aspect Ratio: 10:1(max)
Outline Profile: Punching, Routing Outline Tolerance: 0.127mm
High Light:

1.60mm PWB Circuit Board

,

KB FR4 PWB Circuit Board

,

1.5OZ PWB Circuit Board

KB FR4 1.60mm PWB Circuit Board Gold Plating For Medical Device



KB FR4 1.60mm thickness PWB Circuit board with gold plating for medical device



Production description :



this board is 4layer with 1.5oz copper thickness. it is used for medical device. we can accept any quantity board such as PCB prototype,samll volum, middle and large volume . no MOQ request for new order. all of these boards are met UL,TS16949, ISO9001 Etc.





PCB Flow Chart.pdf



Key Specifications/Special Features:



Layer : 4 Layers
Base Material : FR4 tg150
Copper Thickness : 1.5 oz in all layer
Board Thickness : 1.580mm
Min. Hole Size : 8 mil, 0.2mm
Min. Line Width : 4 / 4 mil
Min. Line Spacing : 4 / 4 mil
Surface Finishing : ENIG
Solder Mask Color : green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Outline : Routing
HS Code : 85340010
Outline profile: 0.127mm
outline tolerance: 0.127mm



Company Introduce:



Accuracy Electronics Technologies Co., Ltd. is a high-tech enterprise specializing in the production and sales of double-sided and multi-layer rigid circuit boards in Boluo County, Huizhou City. It has an independent property factory of about 20,000 square meters, more than 500 employees, and an annual design production capacity of 500,000 square meters. The company has passed ISO9001 and ISO14000 quality and environmental system certification, and has obtained UL certification of the United States. The process capability is comprehensive and the technical strength is strong. The products fully comply with the EU RoHS directive green environmental protection requirements. The company aims to become a first-class professional circuit board manufacturer, providing the highest quality products and services based on quality assurance, we listen to the voice of our customers, establish a good relationship with all customers, and make progress together and grow together





PCBs which are widly used in following Electronics field:



Industril Control System
Power Supply
LED drive, LED Lighting
Communication Device
automotive electronics
Security Electronics
Household Control
Digital Appliances
Frequency converter
Medical Device

  •



KB FR4 1.60mm PWB Circuit Board Gold Plating For Medical Device 0





FAQ :



1. How do ACCPCB ensure quality?



   Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?

PCB Gerber files with RS-274-X format.


4. What’s the typical process flow for multi-layer PCB?

Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.









Contact Details
Accuracy Electronics Technologies Co.,Ltd

Contact Person: sales

Tel: +8615889494185

Send your inquiry directly to us (0 / 3000)
