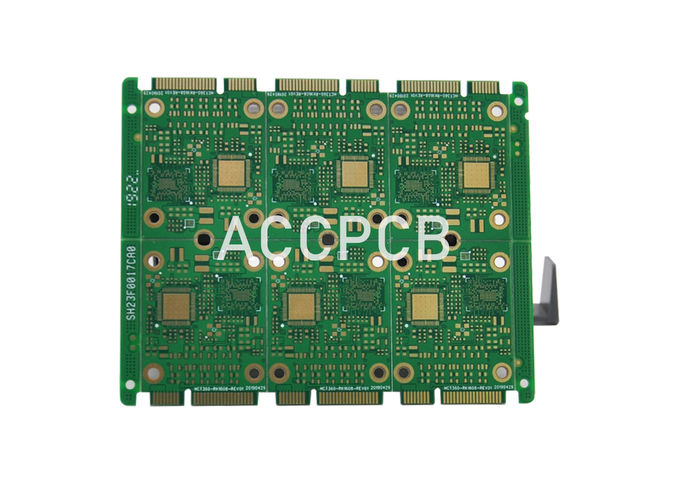

FR4 TG170 Material High Density PCB Green Color Device Control Motherboard

FR4 TG170 Material High Density PCB Green Color Device Control Motherboard

Prodcution Features :

Advantages:

• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery

Full range of testing services:
▪ AOI, function testing, In circuit testing
▪ 3D paste thickness test
▪ Flash testing and earth bonding tests can also be undertaken where required
▪ Using our X-ray machine, we test PCBs to component level and all wiring is fully inspected and tested
▪ Each board is carefully examined by our dedicated inspection team using AOI and high magnification viewers

Shipping Information:
FOB Port : Hong Kong                                                          Lead Time : 8 - 20 days
HTS Code : 8534.00.90                                                   Dimensions per Carton : 37X27X22mm
Weight Per Carton : 20 Kilograms


FAQ :

1. How do ACCPCB ensure quality?

   Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

    Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.

3. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.

5. How many types of surface finish ACCPCB can do?

   the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.

6. What are the main factors which will affect the price of PCB?

   Material;
   Surface finish;

   Board thickness, Copper thickness;
   Technology difficulty;
   Different quality criteria;
   PCB characteristics;
   Payment terms;
