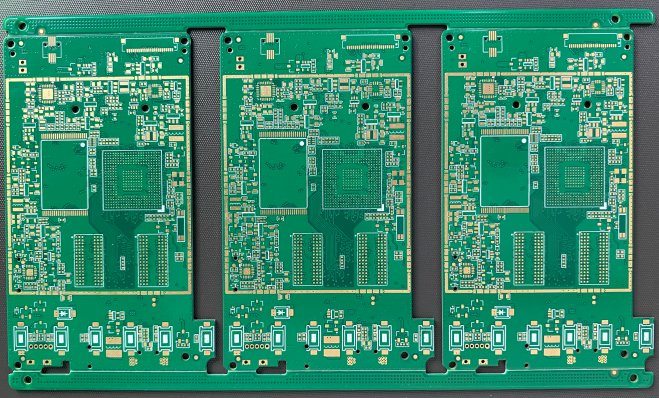

High Tg180 Pcb Printed Circuit Board Fr4 1.20mm Thickness For Voltage Stabilizer

High Tg180 Pcb Printed Circuit Board Fr4 1.20mm Thickness For Voltage Stabilizer

    • High Tg180 Pcb Printed Circuit Board Fr4 1.20mm Thickness For Voltage Stabilizer
    • High Tg180 Pcb Printed Circuit Board Fr4 1.20mm Thickness For Voltage Stabilizer
  • High Tg180 Pcb Printed Circuit Board Fr4 1.20mm Thickness For Voltage Stabilizer

    Product Details:

    Place of Origin: China
    Brand Name: ACCPCB
    Certification: ISO,UL,SGS,TS16949,ROHS
    Model Number: P121706

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: Vacuum Packing With Desiccant
    Delivery Time: 6-10days
    Payment Terms: T/T / Western Union / Paypal
    Supply Ability: 35,000SQ.M/Per Month
    Contact Now
    Detailed Product Description
    Finish Thickness: 1.20±10%mm Minimum Via Dia: 0.15mm
    Surface Finish: Lead Free HAL Dielectric Constant: 4.0
    Application: Electronic Instrument
    High Light:

    pwb printed wiring board

    ,

    pwb assembly

    High Tg180 Pcb Printed Circuit Board Fr4 1.20mm Thickness For Voltage Stabilizer



    Key Specifications/Special Features:



    Material : FR4 8 layer
    Finish thickness :

    1.2 ±10%mm

    Minimum width/spacing :

    0.127 / 0.127mm

    Minimum via dia :

    0.2mm

    Surface finish :

    Lead free HAL

    Immpedance :

    90 ohm

    Solder mask :

    Green

    Legends : White
    Certification :

    ISO UL ROHS SGS

    Company type: Manufacturer/ Factory​




    Here is our PCB order capability:

    • Layer :  top 20 layers
    • Materials : FR-4,  FR4 High Tg
    • TG : 130-180
    • Surface : HASL , Immersion Gold/Silver/Tin, OSP
    • Min drill size : 0.10mm
    • Min track/spacing : 4/4-mil
    • Buried and blind via : 0.2mm
    • CNC Milling and V-cut
    • Solder mask colors : Green, Blue, Black, White, Red and Yellow, Matte green, Matte black, Matte Blue
    • Silkscreen colors : black, white and yellow
    • Half Holes
    • Impedance control
    • Blue Peelable Mask
    • Carbon Treated
    • HDI available



    Main Export Markets:

    • Asia
    • Australasia
    • Central/South America
    • Eastern Europe
    • Mid East/Africa
    • North America
    • Western Europe





    Shipping Information :



    FOB Port :  Hong Kong / Shenzhen

    Lead Time :  6-10 days

    HTS Code :  8534.00.10

    Dimensions Per Carton : 37X27X22 cm

    Weight Per Carton : 20 Kilograms



    FAQ



    1. How do ACCPCB ensure quality?



    Our high quality standard is achieved with the following.

    1.1 The process is strictly controlled under ISO 9001:2008 standards.
    1.2 Extensive use of software in managing the production process
    1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
    1.4.Dedicated quality assurance team with failure case analysis process

    2. What kinds of boards can ACCPCB process?



    Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


    3. What data are needed for PCB production?



    PCB Gerber files with RS-274-X format.


    4. What’s the typical process flow for multi-layer PCB?



    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


    5. How many types of surface finish ACCPCB can do?



    O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


    6. What are the main factors which will affect the price of PCB?



    Material;
    Surface finish;

    Board thickness, Copper thickness;
    Technology difficulty;
    Different quality criteria;
    PCB characteristics;
    Payment terms;



    7. How to you make the impedance calculation?



    The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment
