| Finish Thickness: | 1.3±10%mm | Minimum Via Dia: | 0.15mm |
|---|---|---|---|
| Surface Finish: | Lead Free HAL | Dielectric Constant: | 4.0 |
| Application: | Electronic Device | Name: | PWB Circuit Board |
| High Light: | pwb printed wiring board,pwb assembly |
||

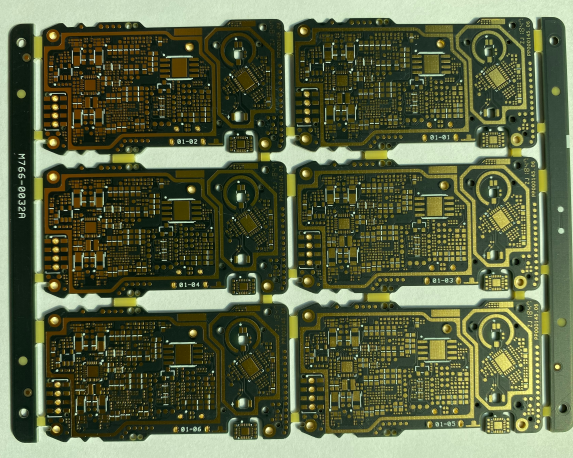

1.30mm thickness PWB Circuit Board with dark Green solder mask for electronic device
| Material : | FR4 6 layer |
| Finish thickness : |
1.30 ±10%mm |
| Minimum width/spacing : |
0.1mm / 0.1mm |
| Minimum via dia : |
0.2mm |
| Surface finish : |
Lead free HAL |
| Immpedance : |
100 ohm |
| Solder mask : |
Dark Green |
| Legends : | White |
| Certification : |
ISO UL ROHS SGS |
| Company type: | Manufacturer/ Factory |
Here is our PCB order capability:
FOB Port : Hong Kong / Shenzhen
Lead Time : 6-10 days
HTS Code : 8534.00.10
Dimensions Per Carton : 37X27X22 cm
Weight Per Carton : 20 Kilograms
FAQ :
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
3. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
4. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
5. What are the main factors which will affect the price of PCB?
Material;
Surface finish;
Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
6. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
