6layer FR4 materialHigh Frequency PCB with 1.0mm thickness Lead Free HAL Prototype PCB Fabrication

6layer FR4 materialHigh Frequency PCB with 1.0mm thickness Lead Free HAL Prototype PCB Fabrication

6layer FR4 materialHigh Frequency PCB with 1.0mm thickness Lead Free HAL Prototype PCB Fabrication
6layer FR4 materialHigh Frequency PCB with 1.0mm thickness Lead Free HAL Prototype PCB Fabrication
6layer FR4 materialHigh Frequency PCB with 1.0mm thickness Lead Free HAL Prototype PCB Fabrication
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P1117
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Supply Ability: 30,000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: FR4 Thickness: 1.60mm
Surface Finish: Lead Free HAL Layer: 2L
Pcb Standard: IPC-A-610 D Usage: OEM Electronics
High Light:

fr4 printed circuit board

,

immersion gold pcb

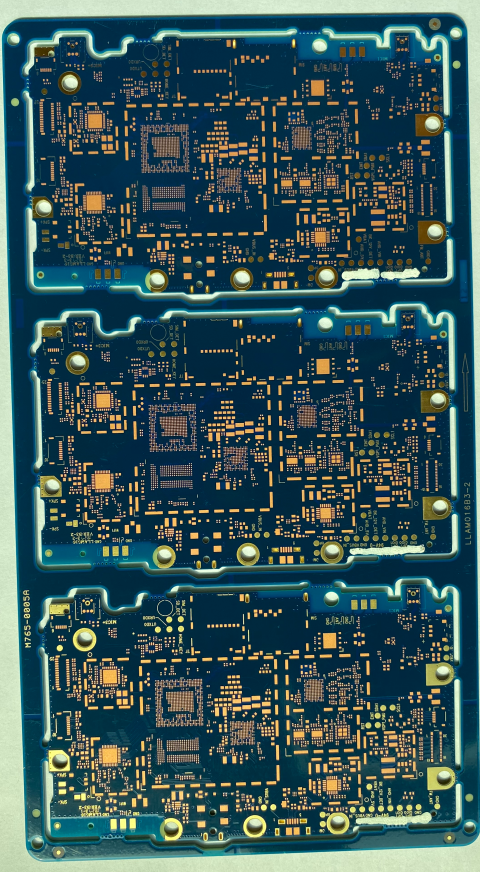

6layer FR4 materialHigh Frequency PCB with 1.0mm thickness Lead Free HAL Prototype PCB Fabrication



Key Specifications/Special Features :

Layer : 6Layers
Base Material : FR4
Copper Thickness : 1 / 1 / 1 / 1 / 1 /1 oz
Board Thickness : 1.0mm
Min. Hole Size : 8 mil / 0.2mm
Min. Line Width : 6 / 6 mil
Min. Line Spacing : 4/4mil
Surface Finishing : ENIG
Solder Mask Color : Blue
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Outline :

Routing





PCB Flow Chart.pdf



Quality assurance :

Every production process has a special person to test to ensure quality, AOI, E-testing, Flying Probe Test.

Have professional engineers to check the quality

All products have passed CE, FCC, ROHS and other certifications



Advantages:
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery



Lead Time :

Lead Time 2 /L 4 /L 6/ L 8/ L
Sample Order 3-5days 6-8days 10-12days 12-14days
Mass Production 7-9days 8-10days 12-15days 15-18days


FAQ :

1. How do ACCPCB ensure quality?

    Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process


2. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.


4. What’s the typical process flow for multi-layer PCB?

   Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


5. How many types of surface finish ACCPCB can do?

    the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


6. What are the main factors which will affect the price of PCB?

Material;
Surface finish;

Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;





                6layer FR4 materialHigh Frequency PCB with 1.0mm thickness Lead Free HAL Prototype PCB Fabrication 0

Contact Details
Accuracy Electronics Technologies Co.,Ltd

Contact Person: sales

Tel: +8615889494185

Send your inquiry directly to us (0 / 3000)
