Fr4 TG150 Material 4 Layer 2 OZ Copper High Frequency PCB

Fr4 TG150 Material 4 Layer 2 OZ Copper High Frequency PCB

Fr4 TG150 Material 4 Layer 2 OZ Copper High Frequency PCB
Fr4 TG150 Material 4 Layer 2 OZ Copper High Frequency PCB
Fr4 TG150 Material 4 Layer 2 OZ Copper High Frequency PCB
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P1116121
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Supply Ability: 30,000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: FR4 TG150 Thickness: 1.2mm
Surface Finish: ENIG Layer: 4L
Copper Thicknes:: 2oz In Each Layer PCB Standard: IPC-A-610 D
Type: OEM PCB,customized PCB Min Holes Size: 4mil
Min. Line Width: 4mil Min Copper Thicness: 20um
Solder Mask Color: Green,yellow, Red, Black Etc. Application: 5G Electronic Production
High Light:

2 OZ Copper High Frequency PCB

,

Fr4 TG150 High Frequency PCB

,

4 Layer Fr4 High Frequency PCB

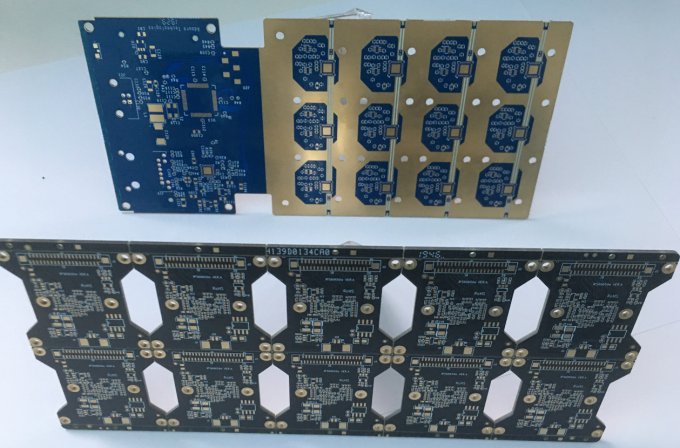

Fr4 TG150 Material 4 Layer 2 OZ Copper High Frequency PCB

4 Layers High Frequency PCB 1.2mm thickness Fr4 TG150 Material 2 OZ Copper Thickness



Production description of High Frequency PCB:

Production Types:  Rigid PCB

Layer :

 4 Layers
Base Material :  FR4 tg150
Copper Thickness :  2 /2 / 2 / 2 / oz
Board Thickness :  1.20mm
Min. Finish Hole Size :  8 mil  (0.10mm)
Min. Line Width :  4 mil
Min. Line Spacing :  4 mil
Surface Finishing : ENIG,OSP,HASL,Immersion Gold,Gold Plating
Drilling hole tolerance: +/-3 mil    (  0.075mm )
Min Outline tolerance : +/-4 mil    (  0.10mm )
Working panel size :  max:1200mmX600mm (47'' X24'')
Outline profile: Punching, Routing , CNC routing + V-cut
Solder mask : LPI Solder mask, Peelable mask
Solder Mask Color : Blue, black,yellow, matte green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Twist and Bow :  no more than 0.75 %

PCB Flow Chart.pdf



Products Application:

1, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;

2, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;

3, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;

4, Industrial controls: Medical device ,UPS equipment, Control device etc;

5, Vehicle Electronices: Car etc;

6, Military & Defense : Military Weapons etc;



Rigid PCB Technical Capability:

 Items                                      Technical Capability
Layers 1-28 layers Min. line width/space 4mil

Max.board size (single&doule

sided)

600*1200mm Min.annular ring width: vias 3mil
Surface finish

HAL lead free,gold flash

Immersion silver,Immersion gold ,Immersion Sn,

hard gold,OSP,ect

Min.board thickness(multilayer) 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
Board materials

FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic,

PTFE,nelcon,

ISOLA,polyclad 370 HR); heavy copper,

Metal base clade laminate

Plating thickness (Technique:

Immersion Ni/Au)

Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U''
Impedance control ± 10%

Distance between

line to board edge

Outline: 0.2mm

V-CUT: 0.4mm

Base copper thickness(Inner

and outer layer)

Min. thickness: 0.5 OZ Max.thickness: 6OZ Min.hole size(board thickness ≥2mm) Aspect ratio≤16
Finished copper thickness Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
Max.board thickness(single&doule sided) 3.20mm



Advantages:
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery



Lead Time :

Lead Time 2 /L 4 /L 6/ L 8/ L
Sample Order 3-5days 6-8days 10-12days 12-14days
Mass Production 7-9days 8-10days 12-15days 15-18day

Fr4 TG150 Material 4 Layer 2 OZ Copper High Frequency PCB 0



FAQ :

1. How do ACCPCB ensure quality?

  Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process


2. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.


4. How many types of surface finish ACCPCB can do?

   ACCPCB has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


5. What are the main factors which will affect the price of PCB?

Material;
Surface finish;

Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;



6. How to you make the impedance calculation?

  The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
