| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P1116124 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 10-12days |
| Payment Terms: | L/C / T/T / Western Union / Paypal |
| Supply Ability: | 30,000SQ.M/Per Month |
| Material: | Halogen Free FR4 | Thickness: | 1.62mm |
|---|---|---|---|
| Surface Finish: | ENIG | Layer: | 4L |
| Pcb Standard: | IPC-A-610 D | Usage: | OEM Electronics |
| Copper Thickness: | 1/2OZ 1OZ 2OZ 3OZ | Min. Line Width: | 3mil |
| Solder Mask Color: | White.Black.Yellow.Green.Red.Blue | Silkscreen Color: | White Or On Your Request. |
| High Light: | 2 OZ Copper High Frequency PCB,Fr4 High Frequency PCB,1.62mm High Frequency PCB |
||

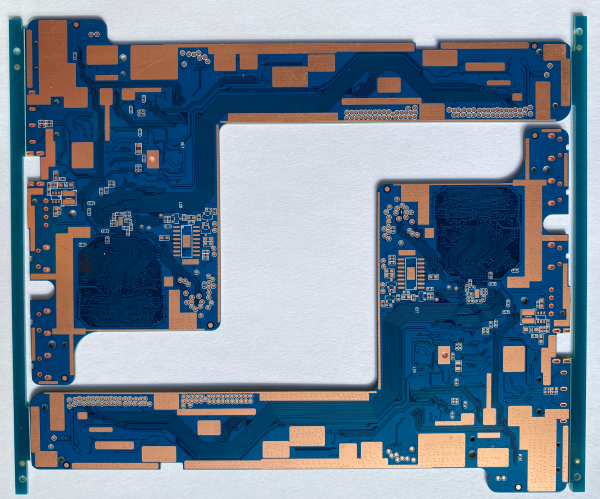

Halogen free Fr4 2 OZ Copper high Frequency PCB with routing outline
Production Description:
The material is halogen free fr4. it is used for communication device. all of PCB have ISO9001, UL, TS16949 ,ROHS certification.
Key Specifications/Special Features :
| Layer : | halogen free 4 Layers |
| Base Material : | FR4 |
| Copper Thickness : | 2 /2 / 2 / 2 / oz |
| Board Thickness : | 1.62mm |
| Min. Hole Size : | 8 mil |
| Min. Line Width : | 6 mil |
| Min. Line Spacing : | 6 /mil |
| Surface Finishing : | immersion gold |
| Solder Mask Color : | Blue |
| Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
| Silkscreen color : | White |
| Outline profile : |
Routing ,punching, punching+v-cuting |
| Nickel plating thickness: | 150u'' to 200 u'' |
| outlline tolerance: | +/- 0.10 |
| Twist and bow: | no more than 0.75% |
| Impedance control: | +/-10% |
ACCPCB Technical Capability.pdf
Quality assurance :
Every production process has a special person to test to ensure quality, AOI, E-testing, Flying Probe Test.
Have professional engineers to check the quality
All products have passed CE, FCC, ROHS and other certifications
Advantages:
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery
Lead Time :
| Lead Time | 2 /L | 4 /L | 6/ L | 8/ L |
| Sample Order | 3-5days | 6-8days | 10-12days | 12-14days |
| Mass Production | 7-9days | 8-10days | 12-15days | 15-18days |
FAQ :
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
3. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
Contact Person: sales
Tel: +8615889494185
