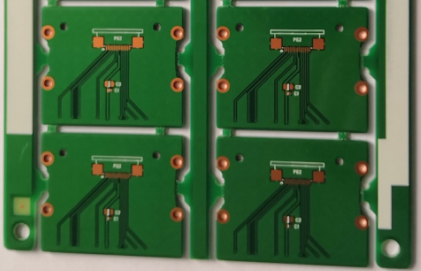

Digital Recorder Nanya FR4 2.0mm High Density PCB With Green Solder Mask

Digital Recorder Nanya FR4 2.0mm High Density PCB With Green Solder Mask

Digital Recorder Nanya FR4 2.0mm High Density PCB With Green Solder Mask
Digital Recorder Nanya FR4 2.0mm High Density PCB With Green Solder Mask
Digital Recorder Nanya FR4 2.0mm High Density PCB With Green Solder Mask
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO,SGS,TS16949
Model Number: S10213
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Vacuum packing
Delivery Time: 3-5days
Payment Terms: T/T ,Western Union,Paypal
Supply Ability: 50000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: Nanya FR4 Count: 8 Layer
Surface Finish: OSP Application: Electronics Digital Recorder
Solder Mask: Green,black, Yellow Etc. Copper Thickness: 1oz All Layer
Min. Hole Size: 8 Mil/6 Mil Min. Line Spacing: 4mil
Min. Line Width: 4mil Service: Customize
High Light:

2.0mm High Density PCB

,

Nanya FR4 High Density PCB

,

Nanya FR4 PCB

Digital Recorder Nanya FR4 2.0mm High Density PCB With Green Solder Mask



Production description :



this board is a high density pcb. it is used on ditial recorder . we can accep PCB prototype,samll volum, middle and large volume. no MOQ request for new boards, for repeat order, just meet 3sq.m.



Key Specifications of single PCB board :



Production Types:

High Density PCB

Layer :

8 Layer

Base Material :

 NanyaFR4

Copper Thickness :

 1 oz

Board Thickness :

2.0mm

Min. Finish Hole Size :

 8 mil  (0.10mm)

Min. Line Width :

 4 mil

Min. Line Spacing :

 4 mil

Surface Finishing :

ENIG,OSP,HASL,Immersion Gold,Gold Plating

Drilling hole tolerance:

+/-3 mil    (  0.075mm )

Min Outline tolerance :

+/-4 mil    (  0.10mm )

Working panel size :

 max:1200mmX600mm (47'' X24'')

Outline profile:

Punching, Routing , CNC routing + V-cut

Solder mask :

LPI Solder mask, Peelable mask

Solder Mask Color :

Blue, black,yellow, matte green

Certificate :

UL, CQC, TS16949, ISO14000, ROHS

Silkscreen color :

White

Twist and Bow :

 no more than 0.75 %



PCB Flow Chart.pdf





Products Application:



1, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;



2, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;



3, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;



4, Industrial controls: Medical device ,UPS equipment, Control device etc;



5, Vehicle Electronices: Car etc;



6, Military & Defense : Military Weapons etc;



Digital Recorder Nanya FR4 2.0mm High Density PCB With Green Solder Mask 0

Technology Capability:



Item

Technical Parameters

Layers

1-28 Layers

Inner Layer Min Trace/Space

4/4 mil

Out Layer Min Trace,Space

4/4 mil

Inner Layer Max Copper

4 OZ

Out Layer Max Copper

4 OZ

Inner Layer Min Copper

1/3 oz

Out Layer Min Copper

1/3 oz

Min hole size

0.15 mm

Max.board thickness

6 mm

Min.board thickness

0.2mm

Max.board size

680*1200 mm

PTH Tolerance

+/-0.075mm

NPTH Tolerance

+/-0.05mm

Countersink Tolerance

+/-0.15mm

Board Thickness Tolerance

+/-10%

Min BGA

7mil

Min SMT

7*10 mil

Solder mask bridge

4 mil

Solder mask color

White,black,blue,green,yellow,red,etc

Legend color

White,black,yellow,gray,etc

Surface finish

HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG

Board materials

FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB

Impedance control

+/-10%

Bow and twist

≤0.5




Digital Recorder Nanya FR4 2.0mm High Density PCB With Green Solder Mask 1
