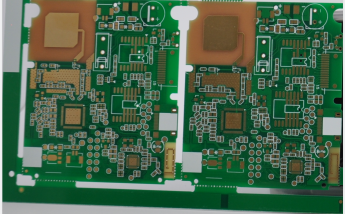

Green FR4 1.5mm Pwb Printed Wiring Board ENIG Surface Finishing

Green FR4 1.5mm Pwb Printed Wiring Board ENIG Surface Finishing

  • Green FR4 1.5mm Pwb Printed Wiring Board ENIG Surface Finishing
  • Green FR4 1.5mm Pwb Printed Wiring Board ENIG Surface Finishing
Green FR4 1.5mm Pwb Printed Wiring Board ENIG Surface Finishing
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO,UL,SGS,TS16949,ROHS
Model Number: P121704
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Vacuum Packing With Desiccant
Delivery Time: 6-10days
Payment Terms: T/T / Western Union / Paypal
Supply Ability: 35,000SQ.M/Per Month
Contact Now
Detailed Product Description
Finish Thickness: 1.5±10%mm Minimum Via Dia: 0.1mm
Surface Finish: ENIG Dielectric Constant: 4.0
Application: Electronic Instrument Name: PWB Circuit Board
Layer: 6layer Cooper Thickness: 1oz
Min Drill Holes: 0.2mm
High Light:

1.5mm Pwb Printed Wiring Board

,

FR4 Pwb Printed Wiring Board

,

Green Pwb Printed Wiring Board

Green FR4 1.5mm Pwb Printed Wiring Board ENIG Surface Finishing





Production description :



this board is 6layer with 1oz copper thickness. it is used on electronic instrument. PCB prototype,small volum, middle and large volume are accepted. no MOQ request for new boards. for repeat order, just meet 3sq.m.



PCB Flow Chart.pdf



Key Specifications/Special Features:



Material : 6 layer FR4
Finish thickness :

1.50 ±10%mm

Minimum width/spacing :

0.1mm / 0.15mm

Minimum via dia :

0.2mm

Surface finish :

ENIG

Immpedance :

90ohm

Solder mask :

Dark Green

Legends : White
Certification :

ISO UL ROHS SGS

Company type: Manufacturer/ Factory​
Min. Finish Hole Size : 8 mil (0.10mm)
Min. Line Width : 4mil
Min. Line Spacing : 4mil
Min Outline tolerance : +/-4 mil ( 0.10mm )
Twist and Bow : no more than 0.75%



Here is our PCB order capability:

  • Layer :  top 20 layers
  • Materials : FR-4,  FR4 High Tg
  • TG : 130-180
  • Surface : HASL , Immersion Gold/Silver/Tin, OSP
  • Min drill size : 0.10mm
  • Min track/spacing : 4/4-mil
  • Buried and blind via : 0.2mm
  • CNC Milling and V-cut
  • Solder mask colors : Green, Blue, Black, White, Red and Yellow, Matte green, Matte black, Matte Blue
  • Silkscreen colors : black, white and yellow
  • Half Holes
  • Impedance control
  • Blue Peelable Mask
  • Carbon Treated
  • HDI available



Applications:



Bonus Systems Class II Tabs-video Devices, Amplifier, Main Control Board, Power Supply,Coinless Systems, Progressive Jackpot Equipment, Slot Devices, Slot Systems, Themed Devices, Video Devices, Video Poker Devices, Amusement Equipment, Simulators, Virtual Reality, Entertainment Admissions Systems, Laser Projection Equipment, Lighting Equipment ect.







Green FR4 1.5mm Pwb Printed Wiring Board ENIG Surface Finishing 0





FAQ :



1. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.



2. How do ACCPCB ensure quality?

  Our high quality standard is achieved with the following.



1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process



3. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.









Contact Details
Accuracy Electronics Technologies Co.,Ltd

Contact Person: sales

Tel: +8615889494185

Send your inquiry directly to us (0 / 3000)
