Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: S8-009B1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Contact Now
Detailed Product Description
Product Name: Fr4 Pcb Manufacturer Count: 2 Layer
Min. Line Width: 0.1mm/4mi Material: FR4 CEM1 CEM3 Hight TG
Pcb Standard: IPC-A-610 E Class II-III Solder Mask Color: White Or As Your Request

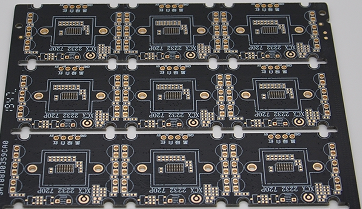

2 layer pcb thickness PWB Circuit Board OSP Surface Strict Liability IPC-A-160 Standard



Production description :

this board is double sided layer. we can accept pcb samples, middle volume and large volume. all of our PCB are met UL, TS 16949,ROHS, ISO certification etc.



Key Specifications/Special Features:

Layer : 2Layers
Base Material : KB FR4
Copper Thickness : 1oz in all layer
Board Thickness : 1.62 mm
Min. Hole Size : 6 mil, 0.15mm
Min. Line Width : 4/4 mil, 0.075/0.075 mm
Min. Line Spacing : 4/4mil, 0.075/0.075 mm
Surface Finishing : OSP

PCB Flow Chart.pdf



Products Application:

1, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;

2, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;

3, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;

4, Vehicle Electronices: Car etc;

5, Industrial controls: Medical device ,UPS equipment, Control device etc;

6, Military & Defense : Military Weapons etc;





Technical Capability:

 ITEMS Capability
 Max. layer count 28L
 Min. line widty 0.08mm
Min. line spacing 0.08mm
 Min. hole size 0.15mm
 Board thickness 0.4-6.0mm
Max. boardsize 520×620mm
(PTH) Hole size tolerance(PTH) ±0.075mm
(NPTH) Hole size tolerance(NPTH) ) ±0.05mm
Holeposition tolerance(Routing) ±0.1mm
 Outline tolerance(Punching) ±0.1mm



FAQ:

 1. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.

2. What data are needed for PCB production?

   PCB Gerber files with RS-274-X format.


3. What’s the typical process flow for multi-layer PCB?

   Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.



4. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process


5. How many types of surface finish ACCPCB can do?

   the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.




2 layer pcb thickness PWB Circuit Board  OSP Surface Strict Liability IPC-A-160 Standard 0
