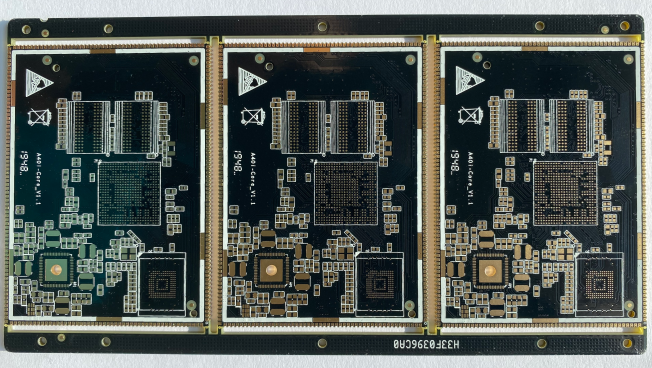

Fr4 Impedance Control Custom Printed Circuit Board 10 Layer For Security Automotive

Fr4 Impedance Control Custom Printed Circuit Board 10 Layer For Security Automotive

    • Fr4 Impedance Control Custom Printed Circuit Board 10 Layer For Security Automotive
    • Fr4 Impedance Control Custom Printed Circuit Board 10 Layer For Security Automotive
  • Fr4 Impedance Control Custom Printed Circuit Board 10 Layer For Security Automotive

    Product Details:

    Place of Origin: China
    Brand Name: ACCPCB
    Certification: ISO, UL, SGS,TS16949
    Model Number: P10931

    Payment & Shipping Terms:

    Minimum Order Quantity: 1-5PCS
    Price: Negotiable
    Packaging Details: Vacuum packaging
    Delivery Time: 12-16days
    Payment Terms: L/C / T/T / Western Union / Paypal
    Supply Ability: 35,000SQ.M/PER MONTH
    Contact Now
    Detailed Product Description
    Material: FR4 Tg170 Layer: 10L
    Thickness: 1.20mm Surface Finishing: Immersion Gold
    Max Board Size: 140mm*160mm Application: Wireless Anternna
    High Light:

    custom printed circuit board

    ,

    dual layer pcb

    Fr4 Impedance Control Custom Printed Circuit Board 10 Layer For Security Automotive



    Key Specifications/Special Features :



    Base Material : FR4
    Board Thickness : 1.20mm
    Layers : 10 layers
    Copper thickness : 1 / 1 / 1 / 1/ 1 / 1 / 1 / 1 / 1 OZ
    Surface Finish : Immersion gold
    Impedance : 50Ohm
    Min. Hole Size : 0.150mm
    Min. Line Width : 0.1mm
    Min. Line Spacing : 0.1mm
    Capacity of Production : 35000Sq.m/month





    Quality assurance :



    Every production process has a special person to test to ensure quality, AOI, E-testing, Flying Probe Test.
    Have professional engineers to check the quality
    All products have passed CE, FCC, ROHS and other certifications



    Application:


    Widely used in stage, Industrila control,computer,consuming electronics,security,automotive,power electronics,medical,telecom etc.



    Lead Time :



    Lead Time 2 /L 4 /L 6/ L 8/ L
    Sample Order 3-5days 6-8days 10-12days 12-14days
    Mass Production 7-9days 8-10days 12-15days 15-18days



    FAQ



    1. How do ACCPCB ensure quality?



    Our high quality standard is achieved with the following.

    1.1 The process is strictly controlled under ISO 9001:2008 standards.
    1.2 Extensive use of software in managing the production process
    1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
    1.4.Dedicated quality assurance team with failure case analysis process

    2. What kinds of boards can ACCPCB process?



    Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


    3. What data are needed for PCB production?



    PCB Gerber files with RS-274-X format.


    4. What’s the typical process flow for multi-layer PCB?



    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


    5. How many types of surface finish ACCPCB can do?



    O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


    6. What are the main factors which will affect the price of PCB?



    Material;
    Surface finish;

    Board thickness, Copper thickness;
    Technology difficulty;
    Different quality criteria;
    PCB characteristics;
    Payment terms;



    7. How to you make the impedance calculation?



    The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment .
