| Material: | FR4tg150 | Application: | Wireless Remote Control |
|---|---|---|---|
| Cooper Thickness: | 1.5 Oz Each Layer | Board Thickness: | 1.20mm |
| Surface Finish: | Immersion Gold | Feature: | Rigid Circuit Boards |
| High Light: | Tg150 Impedance Control PCB,Fr4 Impedance Control PCB,Tg150 4 Layer PCB |
||

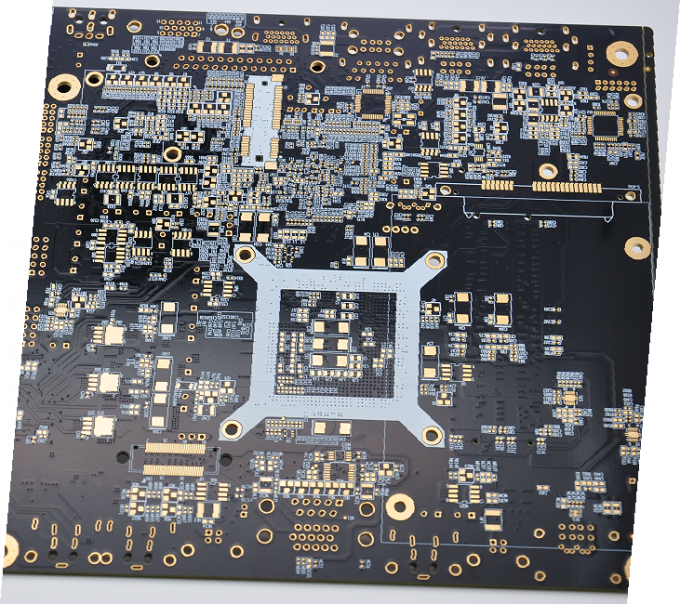

4 Layer Fr4 Tg150 Impedance Control PCB For Wireless Remote Control
Production description :
this board is 4layer PCB it is used on wireless remote control. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new boards. All PCB are passed UL, TS16949, ROHS ,ISO9001 etc. Certification.
Layer : Four Layers
Base Material : FR4
Copper Thickness : 1oz in all layer
Board Thickness : 1.20 mm
Min. Hole Size : 6 mil / 0. 15mm
Min. Line Width : 4 / 4 mil
Min. Line Spacing : 4 / 4 mil
Surface Finishing : Immersion gold ( au :2micron)
Fire-proof level : 94v0
Solder mask : Black
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Technology Capability:
| Item | Technical Parameters |
| Layers | 1-28 Layers |
| Inner Layer Min Trace/Space | 4/4 mil |
| Out Layer Min Trace,Space | 4/4 mil |
| Inner Layer Max Copper | 4 OZ |
| Out Layer Max Copper | 4 OZ |
| Inner Layer Min Copper | 1/3 oz |
| Out Layer Min Copper | 1/3 oz |
| Min hole size | 0.15 mm |
| Max.board thickness | 6 mm |
| Min.board thickness | 0.2mm |
| Max.board size | 680*1200 mm |
| PTH Tolerance | +/-0.075mm |
| NPTH Tolerance | +/-0.05mm |
| Countersink Tolerance | +/-0.15mm |
| Board Thickness Tolerance | +/-10% |
| Min BGA | 7mil |
| Min SMT | 7*10 mil |
| Solder mask bridge | 4 mil |
| Solder mask color | White,black,blue,green,yellow,red,etc |
| Legend color | White,black,yellow,gray,etc |
| Surface finish | HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG |
| Board materials | FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB |
| Impedance control | +/-10% |
| Bow and twist | ≤0.5 |
Quality Goal:
| Category | Performance indicator | Quality Goal |
|
Delivery |
Customer service rate | 99.9% |
| Semi Finished product | Process inspection pass rate | 100% |
| Finished product | FQA Rebate rate | 0.1% |
| Scrapped | 1L scrap rate | 0.5% |
| 2L scrap rate | 1% | |
| Multi Layer scrap rate | 2% | |
| Customers | Customer complaint rate | 0.8% |
| Customer return rate | 0.5% | |
| Customer satisfaction | 99% |
PCBs which are widly used in following Electronics field:
Industril Control System
Power Supply
LED drive, LED Lighting
Communication Device
automotive electronics
Security Electronics
Household Control
Digital Appliances
Frequency converter
Medical Device
