KB FR4 Prototype PCB Fabrication Carbon Ink Lead Free HAL Surface Finishing

KB FR4 Prototype PCB Fabrication Carbon Ink Lead Free HAL Surface Finishing

    • KB FR4 Prototype PCB Fabrication Carbon Ink Lead Free HAL Surface Finishing
    • KB FR4 Prototype PCB Fabrication Carbon Ink Lead Free HAL Surface Finishing
  • KB FR4 Prototype PCB Fabrication Carbon Ink Lead Free HAL Surface Finishing

    Product Details:

    Place of Origin: China
    Brand Name: ACCPCB
    Certification: ISO,SGS,TS16949
    Model Number: S1021

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: Vacuum packing
    Delivery Time: 3-5days
    Payment Terms: T/T ,Western Union,Paypal
    Supply Ability: 50000SQ.M/Per Month
    Contact Now
    Detailed Product Description
    Material: KB FR4 Count: Four Layer
    Surface Finish: Carbon+HAL LEAD FREE Usage: Consumer Electronics
    Solder Mask: Green Copper Thickness: 1oz All Layer
    Min. Line Spacing: 0.15mm Product Name: 94v0 Pcb Board
    Silkscreen Color: White Or On Your Request. Type: Customizable
    High Light:

    quick turn pcb

    ,

    prototype circuit board

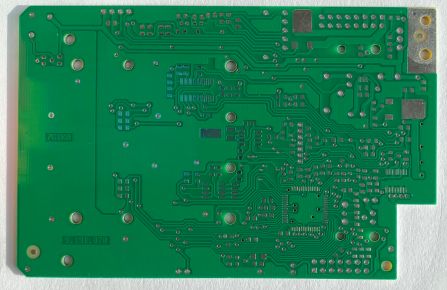

    KB FR4 Prototype PCB Fabrication with Carbon ink + Lead free HAL surface finishing



    PCB Flow Chart.pdf



    Key Specifications/Special Features of carbon boards:



    Number of layers:  6 layer
    Base material:

    KB FR4

    Copper thickness: 1.0 oz Cu in all layer
    Thickness: 2.0 mm
    Size:

    150.6 x 100.5 mm

    Cooper In holes:

    min 20um

    Surface finishing:

    Carbon ink + HAL lead free

    Solder mask:

    LPI soldr mask. peelable mask

    Solder mask:

    Green

    Copper thickness in holes: 0.02mm-0.035mm
    min. line width/space: 0.10mm / 0.10mm
    min.solder mask window : 0.05mm
    outline profile: punching, routing,
    outline tolerance: +/-0.10mm
    twist and bow: no more than 0.75%
    Certificate : UL, CQC, TS16949, ISO14000, ROHS
    Aspect Ratio: 10:1(max)
    min. annular ring witdth: 0.05mm



    Advantages:


    • Strict product liability, taking IPC-A-160 standard
    • Engineering pretreatment before production
    • Production process control (5Ms)
    • 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
    • 100% AOI inspection, including X-ray, 3D microscope and ICT
    • High-voltage test, impedance control test
    • Micro section, soldering capacity, thermal stress test, shocking test
    • In-house PCB production
    • No minimum order quantity and free sample
    • Focus on low to medium volume production
    • Quick and on-time delivery





    KB FR4 Prototype PCB Fabrication Carbon Ink Lead Free HAL Surface Finishing 0

    FAQ :



    1. How do ACCPCB ensure quality?



    Our high quality standard is achieved with the following.

    1.1 The process is strictly controlled under ISO 9001:2008 standards.
    1.2 Extensive use of software in managing the production process
    1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
    1.4.Dedicated quality assurance team with failure case analysis process

    2. What kinds of boards can ACCPCB process?



    Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


    3. What data are needed for PCB production?



    PCB Gerber files with RS-274-X format.


    4. What’s the typical process flow for multi-layer PCB?



    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


    5. How many types of surface finish ACCPCB can do?



    O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


    6. What are the main factors which will affect the price of PCB?



    Material;
    Surface finish;

    Board thickness, Copper thickness;
    Technology difficulty;
    Different quality criteria;
    PCB characteristics;
    Payment terms;



    7. How to you make the impedance calculation?



    The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
