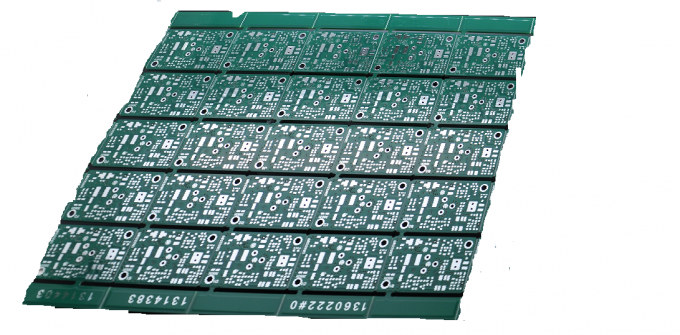

2Oz 8 Layer Prototype PCB Board Immersion Gold For LED Tubes Display

2Oz 8 Layer Prototype PCB Board Immersion Gold For LED Tubes Display

2Oz 8 Layer Prototype PCB Board Immersion Gold For LED Tubes Display
2Oz 8 Layer Prototype PCB Board Immersion Gold For LED Tubes Display
2Oz 8 Layer Prototype PCB Board Immersion Gold For LED Tubes Display
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P1036
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 30000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: FR4TG150 Application: LED Tubes
Cooper Thickness: 2 Oz For All Layer Board Thickness: 1.60mm
Surface Finish: Immersion Gold Feature: Rigid Circuit Boards
High Light:

8 Layer Prototype PCB Board

,

2Oz Prototype PCB Board

,

2Oz prototype pcb assembly

2Oz 8 Layer Prototype PCB Board Immersion Gold For LED Tubes Display



Production description :

this board is 8layer . PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new boards. All PCB are passed UL, TS16949, ROHS ,ISO9001 etc. Certification.



Key Specifications/Special Features:

Layer : 8 Layers

Base Material : FR4
Board Thickness :  1.60 mm
Min. Hole Size : 8 mil / 0.2 mm
Min. Line Width : 5 / 5 mil
Min. Line Spacing : 5 / 5 mil
Surface Finishing : Immersion gold (au : 2 micron )

Fire-proof level : 94v0

Solder mask : Blue

Certificate : UL, CQC, TS16949, ISO14000, ROHS



Technology Capability:

Item Technical Parameters
Layers 1-28 Layers
Inner Layer Min Trace/Space 4/4 mil
Out Layer Min Trace,Space 4/4 mil
Inner Layer Max Copper 4 OZ
Out Layer Max Copper 4 OZ
Inner Layer Min Copper 1/3 oz
Out Layer Min Copper 1/3 oz
Min hole size 0.15 mm
Max.board thickness 6 mm
Min.board thickness 0.2mm
Max.board size 680*1200 mm
PTH Tolerance +/-0.075mm
NPTH Tolerance +/-0.05mm
Countersink Tolerance +/-0.15mm
Board Thickness Tolerance +/-10%
Min BGA 7mil
Min SMT 7*10 mil
Solder mask bridge 4 mil
Solder mask color White,black,blue,green,yellow,red,etc
Legend color White,black,yellow,gray,etc
Surface finish HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG
Board materials FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB
Impedance control +/-10%
Bow and twist ≤0.5





Quality Goal:

Category Performance indicator Quality Goal

Delivery

Customer service rate 99.9%
Semi Finished product Process inspection pass rate 100%
Finished product FQA Rebate rate 0.1%
Scrapped 1L scrap rate 0.5%
2L scrap rate 1%
Multi Layer scrap rate 2%
Customers Customer complaint rate 0.8%
Customer return rate 0.5%
Customer satisfaction 99%









Product Application Field :

2Oz 8 Layer Prototype PCB Board Immersion Gold For LED Tubes Display 0



FAQ:
1. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. What data are needed for PCB production?

   PCB Gerber files with RS-274-X format.

3. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

4. How many types of surface finish ACCPCB can do?

   the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.



2Oz 8 Layer Prototype PCB Board Immersion Gold For LED Tubes Display 1
