| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P11037 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 10days |
| Payment Terms: | L/C / D/P / T/T / Western Union / Paypal |
| Supply Ability: | 30,000SQ.M/Month |
| Thickness: | 1.58mm | Surface Finish: | Immersion Gold |
|---|---|---|---|
| Size: | 80mmX70mm | Color: | Green Solder Mask |
| Service: | OEM Services Provided | Testing: | 100% E-Testing,100% AOI |
| Copper Thickness: | 2oz Or Customized | Min. Line Width: | 0.15mm |
| Min. Line Spacing: | 0.15mm | Product Name: | PCB Circuit Board |
| High Light: | FR4 Double Sided Pcb Board Prototype,KB FR4 Prototype Circuit Board,OEM Double Sided Pcb Board Prototype |
||

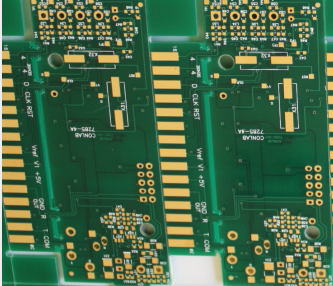

KB FR4 Double Sided Pcb Board Prototype Circuit Board For Set Top Box
Production description :
this board is 2 layer. it is used for set-top box. we can accept any quantity PCB like samples, small volume and large volume. all of our PCB are met UL, TS 16949,ROHS, ISO Etc. certification. no MOQ request for new order.
Production Feature:
| Layer : | 2Layers |
| Base Material : | KBFR4 |
| Copper Thickness : | 2oz in all layer |
| Board Thickness : | 1.58 mm |
| Surface Finish : | Immersion gold |
| Min. Hole Size : | 6 mil, 0.15mm |
| Min. Line Width : | 4/4 mil, 0.10/0.10 mm |
| Min. Line Spacing : | 4/4mil, 0.10/0.10mm |
| Application : | Audio device |
| Certification : | ISO9001, UL, ROHS,TS16949 |
| Outline profile: | Punching, Routing , CNC routing + V-cut |
| Solder mask : | LPI Solder mask, Peelable mask |
| Solder Mask Color : | Blue, black,yellow, matte green |
| Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
| Twist and Bow : | no more than 0.75 % |
PCB Flow Chart.pdf
Products Application:
1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense
FAQ :
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
3. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
4. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
