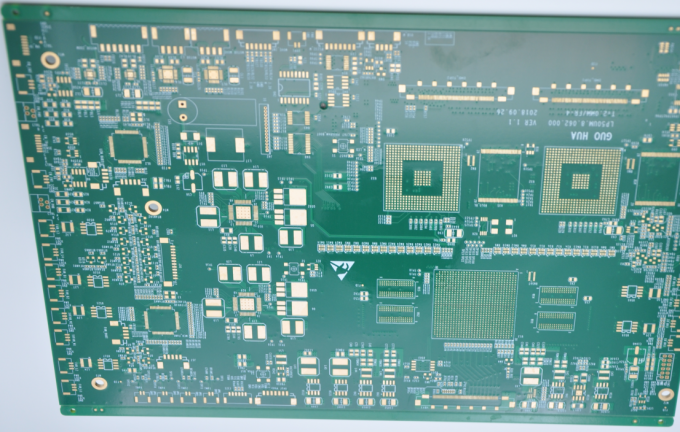

Double Sided Fr4 tg130 2OZ Copper thickness Prototype PCB and Immersion Tin for audio device

•  Green Product : all prodcution meet ROHS SGS Report

• Price : factory price

• Product Features : Class A and Class B material

• Prompt Delivery  : 2-3 days

• Quality Approvals : UL TS16949 ROSH

• Service : In 24 hours

• Small Orders Accepted

​

FAQ:

1. How do ACCPCB ensure quality?

   Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.

3. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.

4. What’s the typical process flow for multi-layer PCB?

    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
