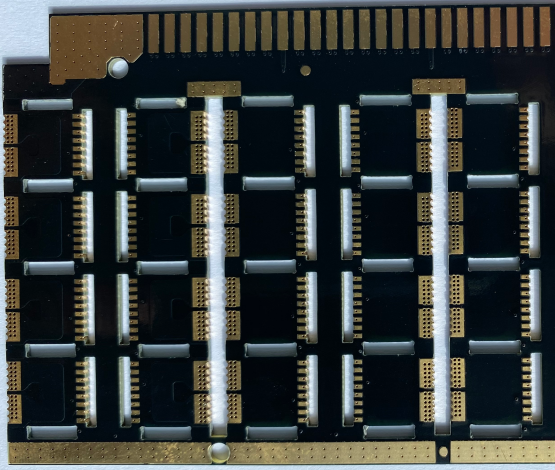

Black Solder Mask ITEQ FR4 4oz Prototype Circuit Board

Black Solder Mask ITEQ FR4 4oz Prototype Circuit Board

Black Solder Mask ITEQ FR4 4oz Prototype Circuit Board
Black Solder Mask ITEQ FR4 4oz Prototype Circuit Board
Black Solder Mask ITEQ FR4 4oz Prototype Circuit Board
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO,SGS,TS16949
Model Number: S10212
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Vacuum packing
Delivery Time: 3-5days
Payment Terms: T/T ,Western Union,Paypal
Supply Ability: 50000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: ITEQ FR4 Count: 4 Layer
Surface Finish: Immersion Gold Application: Electronic Device
Solder Mask: Green,black, Yellow Etc. Copper Thickness: 4oz All Layer
Min. Hole Size: 8 Mil/6 Mil Min. Line Spacing: 4mil
Min. Line Width: 4mil Service: Customize
High Light:

4oz Prototype Circuit Board

,

FR4 Prototype Circuit Board

,

ITEQ Prototype Circuit Board

Black Solder Mask ITEQ FR4 4oz Prototype Circuit Board



ITEQ FR4 Prototype PCB Board with black solder mask , prototype pc boards​



Production description :

this board is 4layer pcb. it is used on electronic device. we can accep PCB prototype,samll volum, middle and large volume. no MOQ request for new boards, for repeat order, just meet 3sq.m for each type board.



Key Specifications of single PCB board :

Production Types:

 Rigid PCB

Layer :

 4 Layer

Base Material :

 iteq FR4

Copper Thickness :

 1.5oz

Board Thickness :

 1.20mm

Min. Finish Hole Size :

 8 mil  (0.10mm)

Min. Line Width :

 4 mil

Min. Line Spacing :

 4 mil

Surface Finishing :

Immersion Gold

Drilling hole tolerance:

+/-3 mil    (  0.075mm )

Min Outline tolerance :

+/-4 mil    (  0.10mm )

Working panel size :

 max:1200mmX600mm (47'' X24'')

Outline profile:

Punching, Routing , CNC routing + V-cut

Solder mask :

LPI Solder mask, Peelable mask

Solder Mask Color :

Blue, black,yellow, matte green

Certificate :

UL, CQC, TS16949, ISO14000, ROHS

Silkscreen color :

White

Twist and Bow :

 no more than 0.75 %



PCB Flow Chart.pdf



Products Application:

1, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;

2, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;

3, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;

4, Industrial controls: Medical device ,UPS equipment, Control device etc;

5, Vehicle Electronices: Car etc;

6, Military & Defense : Military Weapons etc;



Black Solder Mask ITEQ FR4 4oz Prototype Circuit Board 0

Technology Capability:

Item Technical Parameters
Layers 1-28 Layers
Inner Layer Min Trace/Space 4/4 mil
Out Layer Min Trace,Space 4/4 mil
Inner Layer Max Copper 4 OZ
Out Layer Max Copper 4 OZ
Inner Layer Min Copper 1/3 oz
Out Layer Min Copper 1/3 oz
Min hole size 0.15 mm
Max.board thickness 6 mm
Min.board thickness 0.2mm
Max.board size 680*1200 mm
PTH Tolerance +/-0.075mm
NPTH Tolerance +/-0.05mm
Countersink Tolerance +/-0.15mm
Board Thickness Tolerance +/-10%
Min BGA 7mil
Min SMT 7*10 mil
Solder mask bridge 4 mil
Solder mask color White,black,blue,green,yellow,red,etc
Legend color White,black,yellow,gray,etc
Surface finish HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG
Board materials FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB
Impedance control +/-10%
Bow and twist ≤0.5




Black Solder Mask ITEQ FR4 4oz Prototype Circuit Board 1

FAQ :


1. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


2. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.


3. What’s the typical process flow for multi-layer PCB?

    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
