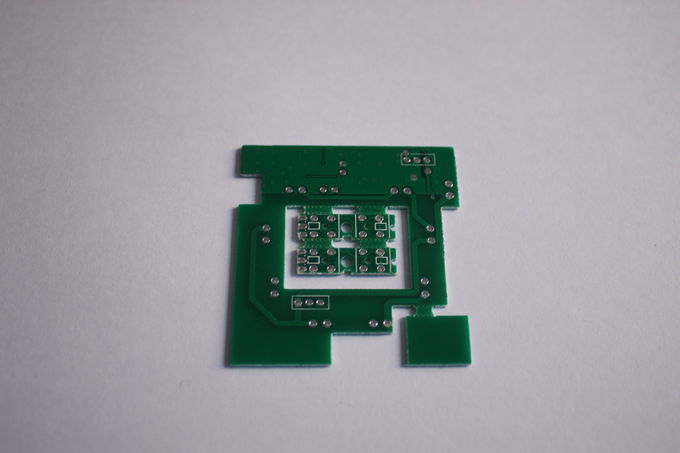

ITEQ FR4 Monitor Circuit Board Immserion Tin Surface Finishing For Digital Video

ITEQ FR4 Monitor Circuit Board Immserion Tin Surface Finishing For Digital Video

ITEQ FR4 Monitor Circuit Board Immserion Tin Surface Finishing For Digital Video
ITEQ FR4 Monitor Circuit Board Immserion Tin Surface Finishing For Digital Video
ITEQ FR4 Monitor Circuit Board Immserion Tin Surface Finishing For Digital Video
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: S1097
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10days
Payment Terms: L/C / D/P / T/T / Western Union / Paypal
Supply Ability: 30,000SQ.M/Month
Contact Now
Detailed Product Description
Material: ITEQ FR4 Surface Finish: Immersion Tin
Size: 100mmX160mm Color: Yellow Solder Mask
Board Thickness: 1.6mm-3.2mm Min. Line Spacing: 0.1mm4mil)
High Light:

enig rohs pcb

,

monitor circuit board

ITEQ FR4 material Lead Free PCB Immserion tin Surface Finishing for digital Video



Production description :

this board is 4layer with 1.5 oz copper thickness. we can accept PCB prototype,samll volum, middle and large volume. no MOQ request for new boards.all boards are met UL,TS16949,ISO9001 etc.



Production Feature:

Layer : 4Layers
Base Material : FR4
Copper Thickness : 1.5 oz in all layer
Board Thickness : 2.0mm
Min. Hole Size : 8mil, 0.2mm
Min. Line Width : 4/4 mil, 0.10/0.10 mm
Min. Line Spacing : 4/4mil, 0.10/0.10mm
Surface Finish : Immersion Tin
Application : digital Video
Certification : ISO9001, UL, ROHS,TS16949



Advantages :
▪ No MOQ, 14 years of PCB turnkey services
▪ Quick turn, prototype, low & medium & high volume
▪ OEM services provide
▪ ISO 9001-, ISO 14001-, ISO/TS16949, ISO 13485, IATF16949, OHSAS18001 certified
▪ 100% E-test, visual, AOI inspection, including X-ray, 3D microscope
▪ Fast response within 24 hours



FAQ :

1. How do ACCPCB ensure quality?

  Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?

   PCB Gerber files with RS-274-X format.


4. What’s the typical process flow for multi-layer PCB?

    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.



6. What are the main factors which will affect the price of PCB?

    Material;
    Surface finish;

    Board thickness, Copper thickness;
   Technology difficulty;
   Different quality criteria;
   PCB characteristics;
    Payment terms;
