OEM Services Prototype Pcb Fabrication Immersion Gold For DC Convert Equipment

OEM Services Prototype Pcb Fabrication Immersion Gold For DC Convert Equipment

    • OEM Services Prototype Pcb Fabrication Immersion Gold For DC Convert Equipment
    • OEM Services Prototype Pcb Fabrication Immersion Gold For DC Convert Equipment
  • OEM Services Prototype Pcb Fabrication Immersion Gold For DC Convert Equipment

    Product Details:

    Place of Origin: China
    Brand Name: ACCPCB
    Certification: ISO, UL, SGS,TS16949
    Model Number: S10171

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiable
    Packaging Details: Vacuum packing with desiccant
    Delivery Time: 10days
    Payment Terms: L/C / D/P / T/T / Western Union / Paypal
    Supply Ability: 30,000SQ.M/Month
    Contact Now
    Detailed Product Description
    Thickness: 1.60mm Surface Finish: ENIG
    Min. Hole Size: 0.15MM Copper Thickness: 0.5-6oz
    Product Name: 94v0 PCB Base Material: FR4 TG130
    High Light:

    enig rohs pcb

    ,

    halogen free pcb

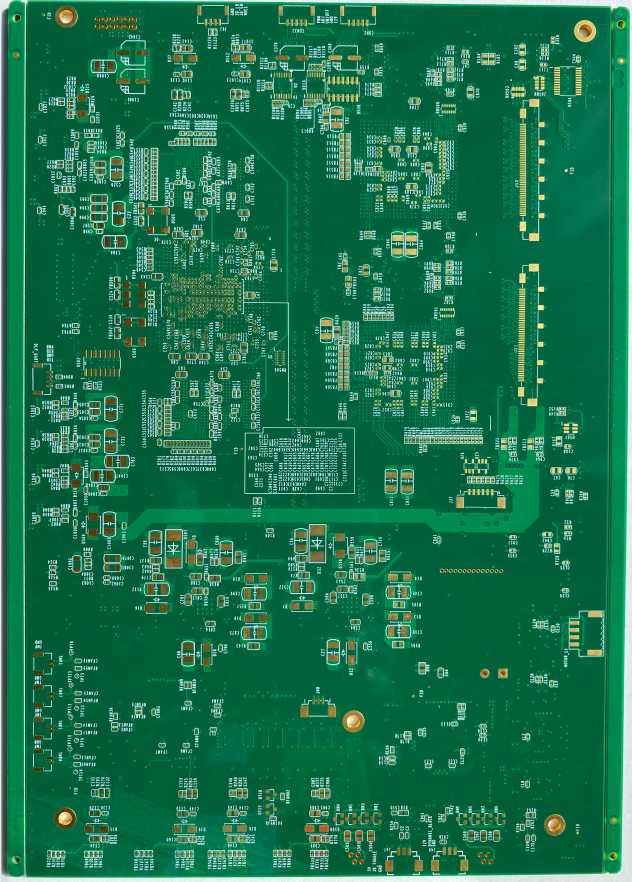

    OEM Services Prototype Pcb Fabrication Immersion Gold For DC Convert Equipment





    Production Feature:



    Layer : 6 Layers
    Base Material : FR4 tg130
    Copper Thickness : 1oz in all layer
    Board Thickness : 1.60 mm
    Surface Finish : Immersion gold
    Min. Hole Size : 6 mil / 0.15mm
    Min. Line Width : 4mil
    Min. Line Spacing : 4mil
    Certification : ISO9001, UL, ROHS,TS16949
    Company type: Manufacturer/ Factory





    Quality assurance :

    • Every production process has a special person to test to ensure quality
    • Have professional engineers to check the quality
    • All products have passed CE, FCC, ROHS and other certifications

    Advantages :


    ▪ No MOQ, 14 years of PCB turnkey services
    ▪ Quick turn, prototype, low & medium & high volume
    ▪ OEM services provide
    ▪ ISO 9001-, ISO 14001-, ISO/TS16949, ISO 13485, IATF16949, OHSAS18001 certified
    ▪ 100% E-test, visual, AOI inspection, including X-ray, 3D microscope
    ▪ Fast response within 24 hours





     FQA :



    1. How do ACCPCB ensure quality?



    Our high quality standard is achieved with the following.

    1.1 The process is strictly controlled under ISO 9001:2008 standards.
    1.2 Extensive use of software in managing the production process
    1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
    1.4.Dedicated quality assurance team with failure case analysis process

    2. What kinds of boards can ACCPCB process?



    Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


    3. What data are needed for PCB production?



    PCB Gerber files with RS-274-X format.


    4. What’s the typical process flow for multi-layer PCB?



    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


    5. How many types of surface finish ACCPCB can do?



    O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


    6. What are the main factors which will affect the price of PCB?



    Material;
    Surface finish;

    Board thickness, Copper thickness;
    Technology difficulty;
    Different quality criteria;
    PCB characteristics;
    Payment terms;



    7. How to you make the impedance calculation?



    The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment
