Green Solder Mask FR4 TG150 Lead Free PCB Board

Green Solder Mask FR4 TG150 Lead Free PCB Board

Green Solder Mask FR4 TG150 Lead Free PCB Board
Green Solder Mask FR4 TG150 Lead Free PCB Board
Green Solder Mask FR4 TG150 Lead Free PCB Board
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: S1207126
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Contact Now
Detailed Product Description
Product Name: Multilayer Rigid Boards Thickness: 1.60mm
Size: 200mmX160mm Min. Line Spacing: 0.1MM / 4MIL
Board Thickness: 0.5~3.2mm Surface Finishing: HAL LEAD FREE, Immersion Gold,immersion Silver /TIN
Copper Thickness: 0.5oz-6oz Min Line Spacing: 4mil (0.1mm)
Min.line Width: 4 Mil ( 0.1mm) Min Drill Hole Size: 0.2mm
High Light:

TG150 Lead Free PCB

,

TG150 Lead Free PCB Board

,

Solder Mask FR4 PCB Board

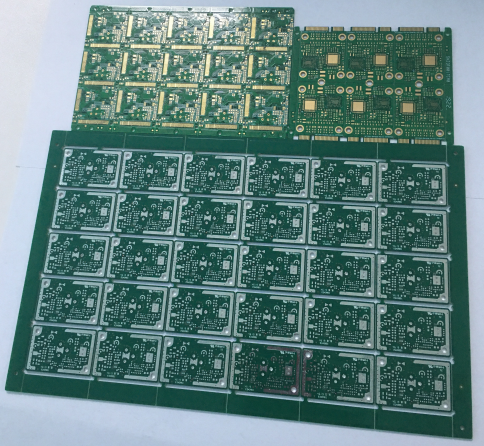

FR4 TG150 material Lead free PCB board green soldermask for power supply





Key Specifications of amplifier PCB board:

Production Types: Rigid PCB
Layer : 3 layer
Base Material : FR4 tg150
Copper Thickness : 1 oz
Board Thickness : 1.60mm
Min. Finish Hole Size : 8 mil (0.10mm)
Min. Line Width : 4 mil
Min. Line Spacing : 4 mil
Surface Finishing : ENIG,OSP,HASL,Immersion Gold,Gold Plating
Drilling hole tolerance: +/-3 mil ( 0.075mm )
Min Outline tolerance : +/-4 mil ( 0.10mm )
Working panel size : max:1200mmX600mm (47'' X24'')
Outline profile: Punching, Routing , CNC routing + V-cut
Solder mask : LPI Solder mask, Peelable mask
Solder Mask Color : Blue, black,yellow, matte green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Twist and Bow : no more than 0.75 %



PCB Chart.pdf



Products Application:

1, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;

2, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;

3, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;

4, Vehicle Electronices: Car etc;

5, Smart Home: Wearable device ,computers, ipad , Remote Control etc;

6, Industrial controls: Medical device ,UPS equipment, Control device etc;

7, Military & Defense : Military Weapons etc;



Advantages :
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery



Technical Capability:

 ITEMS Capability
 Max. layer count 28L
 Min. line widty 0.08mm
Min. line spacing 0.08mm
 Min. hole size 0.15mm
 Board thickness 0.4-6.0mm
Max. boardsize 520×620mm
(PTH) Hole size tolerance(PTH) ±0.075mm
(NPTH) Hole size tolerance(NPTH) ) ±0.05mm
Holeposition tolerance(Routing) ±0.1mm
 Outline tolerance(Punching) ±0.1mm





Green Solder Mask FR4 TG150 Lead Free PCB Board 0



FAQ:

1. How do ACCPCB ensure quality?

   Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process



2. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.



3. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.



4. How many types of surface finish ACCPCB can do?

    the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


5. What are the main factors which will affect the price of PCB?

Material;
Surface finish;

Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
