Rigid High TG Fr4 TG180 Layer PCB 2 OZ Copper For XDSL Router

Rigid High TG Fr4 TG180 Layer PCB 2 OZ Copper For XDSL Router

Rigid High TG Fr4 TG180 Layer PCB 2 OZ Copper For XDSL Router
Rigid High TG Fr4 TG180 Layer PCB 2 OZ Copper For XDSL Router

Product Details:

Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P1116127

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Supply Ability: 30,000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: FR4 TG180 Thickness: 1.58mm
Surface Finish: ENIG Layer: 8L
Copper Thicknes:: 1oz Inner Layer / 2oz Outlayer PCB Standard: IPC-A-610 D
Type: OEM PCB,customized PCB Min Holes Size: 4mil
Min. Line Width: 4mil Min Copper Thicness: 20um
Solder Mask Color: Green,yellow, Red, Black Etc. Application: 5G Electronic Production
High Light:

Fr4 TG 180 8 Layer PCB

,

Fr4 TG 180 Rigid PCB

,

2OZ 8 Layer PCB

Rigid High TG Fr4 TG180 Layer PCB 2 OZ Copper For XDSL Router



Production description :



it is used for XDSL router. we can accep PCB prototype,samll volum, middle and large volume. no MOQ request for new boards, for repeat order, just meet 3sq.m.





Production description of High Frequency PCB:



Production Types:  Rigid PCB

Layer :

 8 Layers
Base Material :  FR4 tg180
Copper Thickness :  2 / 1 / 1 / 1 / 1 / 1 / 1 / 2 oz
Board Thickness :  1.580mm
Min. Finish Hole Size :  8 mil  (0.10mm)
Min. Line Width :  4 mil
Min. Line Spacing :  4 mil
Surface Finishing : immersion Gold,Gold Plating
Drilling hole tolerance: +/-3 mil    (  0.075mm )
Min Outline tolerance : +/-4 mil    (  0.10mm )
Working panel size :  max:1200mmX600mm (47'' X24'')
Outline profile: Punching, Routing , CNC routing + V-cut
Solder mask : LPI Solder mask, Peelable mask
Solder Mask Color : Blue, black,yellow, matte green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Twist and Bow :  no more than 0.75 %



PCB Flow Chart.pdf





Products Application:



1, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;



2, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;



3, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;



4, Industrial controls: Medical device ,UPS equipment, Control device etc;



5, Vehicle Electronices: Car etc;



6, Military & Defense : Military Weapons etc;





Rigid PCB Technical Capability:



 Items                                      Technical Capability
Layers 1-28 layers Min. line width/space 4mil

Max.board size (single&doule

sided)

600*1200mm Min.annular ring width: vias 3mil
Surface finish

HAL lead free,gold flash

Immersion silver,Immersion gold ,Immersion Sn,

hard gold,OSP,ect

Min.board thickness(multilayer) 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
Board materials

FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic,

PTFE,nelcon,

ISOLA,polyclad 370 HR); heavy copper,

Metal base clade laminate

Plating thickness (Technique:

Immersion Ni/Au)

Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U''
Impedance control ± 10%

Distance between

line to board edge

Outline: 0.2mm

V-CUT: 0.4mm

Base copper thickness(Inner

and outer layer)

Min. thickness: 0.5 OZ Max.thickness: 6OZ Min.hole size(board thickness ≥2mm) Aspect ratio≤16
Finished copper thickness Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
Max.board thickness(single&doule sided) 3.20mm



Advantages:


• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery

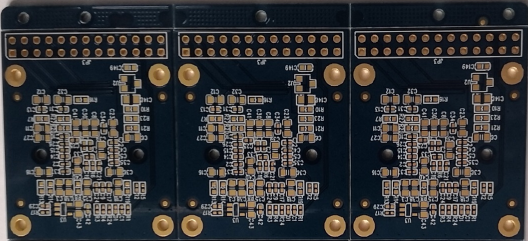

Rigid High TG Fr4 TG180 Layer PCB 2 OZ Copper For XDSL Router 0



FAQ :



1. How do ACCPCB ensure quality?



Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?



Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?



PCB Gerber files with RS-274-X format.


4. What’s the typical process flow for multi-layer PCB?



Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


5. How many types of surface finish ACCPCB can do?



ACCPCB has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


6. What are the main factors which will affect the price of PCB?



Material;
Surface finish;

Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;



7. How to you make the impedance calculation?



The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
