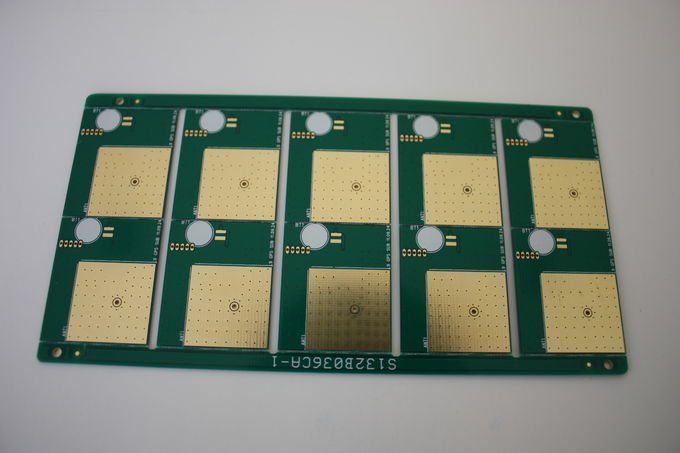

Bluetooth Speaker 0.1mm 4 Mil PCB Minimum Line Spacing

Bluetooth Speaker 0.1mm 4 Mil PCB Minimum Line Spacing

    • Bluetooth Speaker 0.1mm 4 Mil PCB Minimum Line Spacing
    • Bluetooth Speaker 0.1mm 4 Mil PCB Minimum Line Spacing
  • Bluetooth Speaker 0.1mm 4 Mil PCB Minimum Line Spacing

    Product Details:

    Place of Origin: China
    Brand Name: ACCPCB
    Certification: ISO, UL, SGS,TS16949
    Model Number: P1012

    Payment & Shipping Terms:

    Minimum Order Quantity: 20PCS
    Price: Negotiable
    Packaging Details: Vacuum packing with desiccant
    Delivery Time: 9-15 Days
    Payment Terms: L/C / D/A / T/T / Western Union
    Supply Ability: 30,000SQ.M/PER MONTH
    Contact Now
    Detailed Product Description
    Material: FR4 TG150 Thickness: 1.6mm
    Application: Bluetooth Speaker Size: 95mmX60mm
    Surface Finishing: ENIG Number Of Layers: 6layer
    High Light:

    computer circuit board

    ,

    lcd display pcb

    Bluetooth Speaker High TG PCB Wide Applicaton 0.1mm 4 Mil Minimum Line Spacing



    Key Specifications/Special Features :



    Layer : 6layer
    Base Material : FR4TG150
    Copper Thickness : 1 / 1 / 1 / 1 / 1
    Board Thickness : 1.50mm
    Min. Hole Size : 8mil / 0.2mm
    Min. Line Width : 4/4 mil
    Min. Line Spacing : 4/4mil
    Surface Finishing : ENIG
    Solder Mask Color : Green
    Certificate : UL, CQC, TS16949, ISO14000, ROHS
    Silkscreen color : White
    Outline : Routing,V-Groove, Beveling punch





    Quality assurance :

    • Every production process has a special person to test to ensure quality, AOI and E-testing.
    • Have professional engineers to check the quality
    • All products have passed CE, FCC, ROHS and other certifications

    Application:



    Industril Control System
    Power Supply
    LED drive, LED Lighting
    Communication Device
    automotive electronics
    Security Electronics
    Household Control
    Digital Appliances
    Frequency converter
    Medical Device



    Shipping Information:


    FOB Port : Hong Kong / Shenzhen                                     Lead Time : 8 - 15 days
    HTS Code : 8534.00.10                                    Dimensions per Carton : 37X27X22mm
    Weight Per Carton : 20 Kilograms



    FAQ :



    1. How do ACCPCB ensure quality?



    Our high quality standard is achieved with the following.



    1.1 The process is strictly controlled under ISO 9001:2008 standards.
    1.2 Extensive use of software in managing the production process
    1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
    1.4.Dedicated quality assurance team with failure case analysis process

    2. What kinds of boards can ACCPCB process?



    Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


    3. What data are needed for PCB production?



    PCB Gerber files with RS-274-X format.


    4. What’s the typical process flow for multi-layer PCB?



    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


    5. How many types of surface finish ACCPCB can do?



    O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


    6. What are the main factors which will affect the price of PCB?



    Material;
    Surface finish;

    Board thickness, Copper thickness;
    Technology difficulty;
    Different quality criteria;
    PCB characteristics;
    Payment terms;



    7. How to you make the impedance calculation?



    The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
