| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P11012 |
| Minimum Order Quantity: | 20PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 8-15 Days |
| Payment Terms: | L/C / D/A / T/T / Western Union |
| Supply Ability: | 30,000SQ.M/PER MONTH |
| Material: | FR4 TG170 | Thickness: | 1.20mm |
|---|---|---|---|
| Size: | 120mmX160mm | Number Of Layers: | 4layer |
| Min. Line Spacing: | 0.1mm4mil) | Surface Finishing: | Gold Plating |
| High Light: | computer circuit board,lcd display pcb |
||

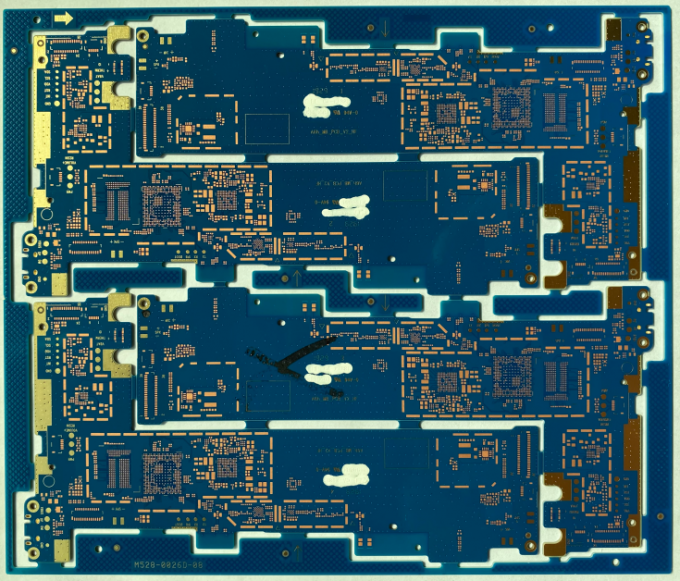

FR4 TG170 Material 120mmX160mm Size with immersion gold for dc dc converter pcb
Key Specifications/Special Features :
| Layer : | 4Layers |
| Base Material : | ITEQ FR4TG170 |
| Board Thickness : | 1.20mm |
| Min. Hole Size : | 6mil, 0.15mm |
| Min. Line Width : | 4/4 mil |
| Min. Line Spacing : | 4/4mil |
| Surface Finishing : | immersion gold |
| Solder Mask Color : | Green ,Red,Blue,White,Yellow,Red |
| Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
| Silkscreen color : | White,Yellow,Red,Black |
| Outline : | Routing,V-Groove, Beveling punch |
| Company type: | Manufacturer/ Factory |
Quality assurance :
Every production process has a special person to test to ensure quality, AOI and E-testing.
Have professional engineers to check the quality
All products have passed CE, FCC, ROHS and other certifications
Application:
Industril Control System
Power Supply
LED drive, LED Lighting
Communication Device
automotive electronics
Security Electronics
Household Control
Digital Appliances
Frequency converter
Medical Device
Shipping Information:
FOB Port : Hong Kong / Shenzhen Lead Time : 8 - 15 days
HTS Code : 8534.00.10 Dimensions per Carton : 37X27X22mm
Weight Per Carton : 20 Kilograms
FAQ :
1. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
4. What are the main factors which will affect the price of PCB?
Material;
Surface finish;
Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
5. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
